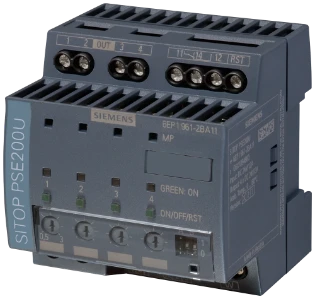

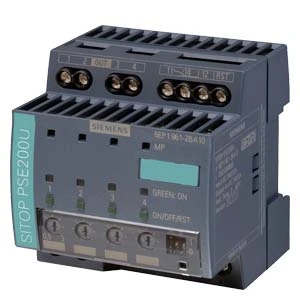

6EP1961-2BA11 PSE200U 0,5-3A SELECTIVITY MODULE 4-CHANNEL
SITOP PSE200U 3 A selectivity module 4-channel input: 24 V DC/12 A output: 24 V DC/4x 3 A threshold value adjustable 0.5-3 A with common signaling contact The SITOP PSE200U selectivity module is the optimum enhancement for all 24 V power supplies to distribute the load current to several feeders and to monitor it. Overloads and short-circuits in one or more feeders are detected reliably. The electronics permit brief current peaks caused, for example, by high inrush currents, but disconnect feeders in the event of an extended overload. This is ensured even on high-resistance lines and in the case of "creeping" short-circuits. The intact feeders continue to besupplied with 24 V on an absolutely interruption- and reaction-free basis and plant downtimes are minimized. Signaling of the faulty feeder takes place by the LEDs on the device as well as via group signaling contact. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.
Specificaties
Algemeen
Ons artikelnummer | 1135054 |
Artikelnummer fabrikant | 6EP19612BA11 |
EAN-code | 4025515152651 |
Artikelklasse (ETIM) | Stroomrelais |
Merk | Siemens |
Serie | |
Type nummer | 6EP1961-2BA11 |
Omschrijving | SITOP PSE200U selectivity module, 24 V DC/4 x 0.5-3A w. common signali |
Land van Oorsprong | AT |
Technisch
Uitvoering elektrische aansluiting | Schroefaansluiting |
Met afneembare klemmen | Nee |
1-fase-onderstroom mogelijk | Nee |
3-fasen-onderstroom mogelijk | Nee |
1-fase-overstroom mogelijk | Nee |
Breedte | 72 mm |
3-fasen-overstroom mogelijk | Nee |
1-fase-hysterese mogelijk | Nee |
3-fasen-hysterese mogelijk | Nee |
Bevat functie gelijkspanningsonderstroom | Nee |
Bevat functie gelijkspanningsoverstroom | Ja |
Functie gelijkstroomhysterese | Ja |
Nom. stuurspanning bij DC | 22 - 30 V |
Type stuurspanning | DC |
Stroommeetbereik | 0.5 - 3 A |
Max. toegestane opkomvertragingstijd | 5 s |
Aantal contacten als verbreekcontact | 0 |
Aantal contacten als maakcontact | 0 |
Aantal contacten als wisselcontact | 1 |
Hoogte | 80 mm |
Diepte | 72 mm |
Logistiek
Beschikbare voorraad | 1 st |
Levertermijn | Verwacht over 1 werkdag |
Aantal eenheden in artikel | 1 st |
Minimale bestelafname | 1 st |
Standaard voorraadartikel | Ja |
Bruto gewicht | 0,203 kg |
Afmeting verpakking | 0,088 x 0,082 x 0,077 m |
Prijs
Bruto prijs (€) | 121,00 per 1 st |
