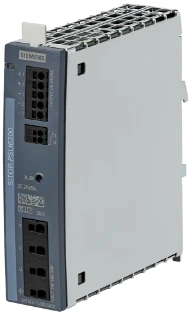

Siemens - Gelijkstroomvoedingseenheid - 6EP3433-7SB00-0AX0
Brutoprijs 171,00

Siemens - Gelijkstroomvoedingseenheid - 6EP3433-7SB00-0AX0 Duurzaam product

Ons artikelnummer
3126838
Artikelnummer fabrikant
6EP34337SB000AX0
Type nummer
6EP3433-7SB00-0AX0
EAN-code
4025515155300

Spanningstype voedingsspanning
AC/DC
1e Secundaire spanning
24 - 24 V
Nom. uitgangsstroom 1
5 A
Max. uitgangsstroom 1
5 A
Breedte
35 mm

171,00
Brutoprijs 171,00
Configureer via Siemens TIA Selection Tool

Productomschrijving

6EP34337SB000AX0 SITOP PSU6200 24 V/5 A stabilized power supply input: 400 - 500 V AC o

SITOP PSU6200 24 V/5 A stabilized power supply input: 400 - 500 V AC output: 24 V DC/5 A

SITOP PSU6200 24 V/5 A stabilized power supply input: 400 - 500 V AC output: 24 V DC/5 A The 3-phase SITOP PSU6200 are standard power supplies for high technical requirements. They are suitable for many fields of application, particularly in the industrial environment, such as series machine building. The premium design of the PSU6200 series, in connection with the push-in terminals, represents effective wiring. The modules in this product family are all-rounders featuring a long service life and absolute reliability. The high level of efficiency across the entire load range as well as the lowno-load losses result in lower overall energy consumption. To further increase 24 V availability, the SITOPPSU6200 power supply units can be combined with DC UPS, redundancy and selectivity modules. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.

Duurzaam product Duurzaam product

Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Gelijkstroomvoedingseenheid" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.


Specificaties

Algemeen

Ons artikelnummer 3126838
Artikelnummer fabrikant 6EP34337SB000AX0
EAN-code 4025515155300
Artikelklasse (ETIM) Gelijkstroomvoedingseenheid
Merk Siemens
Serie
Type nummer 6EP3433-7SB00-0AX0
Omschrijving Power supply SITOP PSU6200, 3-phase 24 V DC/5 A
Land van Oorsprong DE

Technisch

Spanningstype voedingsspanning AC/DC
1e Secundaire spanning 24 - 24 V
Nom. uitgangsstroom 1 5 A
Max. uitgangsstroom 1 5 A
Breedte 35 mm
Secundaire spanning instelbaar Ja
Kortsluitvast Ja
Uitgangsspanning geregeld Ja
Vermogensafgifte 120 W
Gestabiliseerd Ja
Uitvoering elektrische aansluiting Veerklemaansluiting
Draagrailmontage mogelijk Ja
Wandmontage mogelijk Nee
Modulaire uitvoering (voor railmontage) Ja
Inbouwhoogte 225 mm
Directe montage mogelijk Nee
Hoogte 135 mm
Diepte 125 mm
Beschermingsgraad (IP) IP20
Nom. uitgangsspanning 1 24 V
Inbouwbreedte 35 mm

Logistiek

Aantal eenheden in artikel 1 st
Minimale bestelafname 1 st
Standaard voorraadartikel Nee
Bruto gewicht 0,835 kg
Afmeting verpakking 0,191 x 0,187 x 0,073 m

Prijs

Bruto prijs (€) 171,00 per 1 st
