Siemens - Stroomrelais - 6EP1961-2BA00
Aanbevelingen
Productomschrijving

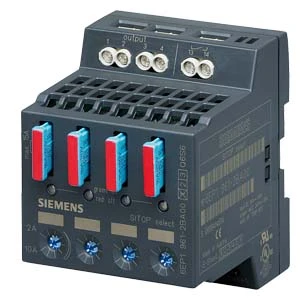

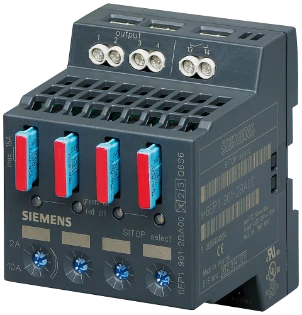

6EP1961-2BA00 SITOP SELECT 4-KANAALS_ZEKERINGSMOD. 2-10A
SITOP select diagnostics module 4-channel input: 24 V DC/40 A output: 24 V DC/4x 10 A threshold adjustable 2-10 A The SITOP select diagnostics module is the optimum enhancement for all 24 V power supplies to distribute the load current to several feeders and to monitor it. Overloads and short-circuits in one or more feeders are detected reliably. The electronics permit brief current peaks caused, for example, by high inrush currents, but disconnect feeders in the event of an extended overload. This is ensured even on high-resistance lines and in the case of "creeping" short-circuits. The intact feeders continue to be supplied with 24 V on an absolutely interruption- and reaction-free basis and plant downtimes are minimized. Signaling of the faulty channel takes place via the LEDs on the device and common signaling contact. Regardless of the industry or requirement: Siemens offers reliable and efficient power supplies for any plant.
Specificaties
Algemeen
Ons artikelnummer | 1023627 |
Artikelnummer fabrikant | 6EP19612BA00 |
EAN-code | 4025515150640 |
Artikelklasse (ETIM) | Stroomrelais |
Merk | Siemens |
Serie | |
Type nummer | 6EP1961-2BA00 |
Omschrijving | Diagnostics module SITOP select, 24 V DC/4 x 2 ... 10 A |
Land van Oorsprong | AT |
Technisch
Uitvoering elektrische aansluiting | Schroefaansluiting |
Met afneembare klemmen | Nee |
1-fase-onderstroom mogelijk | Nee |
3-fasen-onderstroom mogelijk | Nee |
1-fase-overstroom mogelijk | Nee |
Breedte | 72 mm |
3-fasen-overstroom mogelijk | Nee |
1-fase-hysterese mogelijk | Nee |
3-fasen-hysterese mogelijk | Nee |
Bevat functie gelijkspanningsonderstroom | Nee |
Bevat functie gelijkspanningsoverstroom | Ja |
Functie gelijkstroomhysterese | Ja |
Nom. stuurspanning bij DC | 22 - 30 V |
Type stuurspanning | DC |
Stroommeetbereik | 2 - 10 A |
Max. toegestane opkomvertragingstijd | 5 s |
Aantal contacten als verbreekcontact | 0 |
Aantal contacten als maakcontact | 1 |
Aantal contacten als wisselcontact | 0 |
Hoogte | 90 mm |
Diepte | 90 mm |
Logistiek
Beschikbare voorraad | 4 st |
Levertermijn | Verwacht over 1 werkdag |
Aantal eenheden in artikel | 1 st |
Minimale bestelafname | 1 st |
Standaard voorraadartikel | Ja |
Bruto gewicht | 0,292 kg |
Afmeting verpakking | 0,13 x 0,1 x 0,08 m |
Prijs
Bruto prijs (€) | 147,00 per 1 st |
