Siemens - Gelijkstroomvoedingseenheid - 6EP3334-7SB00-3AX0
Aanbevelingen
Productomschrijving

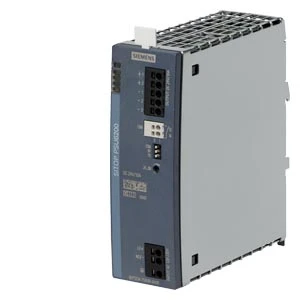

6EP3334-7SB00-3AX0 24V/10A SITOP PSU6200 24V/10A
SITOP PSU6200 24 V/10 A stabilized power supply input: 120 - 240 V AC (110 - 240 V DC) output: 24 V DC/10 A with diagnostic interface The 1-phase SITOP PSU6200 are technology power supplies for sophisticated solutions and offer maximum functionality for use in complex plants and machines. The wide-range input allows a connection to almost any electricity supply network worldwide and ensures a high degree of safety even if there are large voltage fluctuations. The extra power supplies up to 150% of the rated current for a short time. In case of overload, the PSU6200 provides constant current up to a voltage of 15 V DC. The extremely high degree of efficiency keeps energy consumption and heat buildup in the control cabinet low, and the compact metal enclosure also saves space. To further increase 24 V availability, the SITOP PSU6200 power supply units can be combined with buffer, DC UPS, redundancy and selectivity modules.
Duurzaam product
Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Gelijkstroomvoedingseenheid" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.
Specificaties
Algemeen
Ons artikelnummer | 1216469 |
Artikelnummer fabrikant | 6EP33347SB003AX0 |
EAN-code | 4025515155188 |
Artikelklasse (ETIM) | Gelijkstroomvoedingseenheid |
Merk | Siemens |
Serie | |
Type nummer | 6EP3334-7SB00-3AX0 |
Omschrijving | Power supply SITOP PSU6200, single-phase 24 V DC/10 A |
Land van Oorsprong | AT |
Technisch
Spanningstype voedingsspanning | AC/DC |
1e Secundaire spanning | 24 - 24 V |
Nom. uitgangsstroom 1 | 10 A |
Max. uitgangsstroom 1 | 10 A |
Breedte | 45 mm |
Secundaire spanning instelbaar | Ja |
Kortsluitvast | Ja |
Nom. voedingsspanning bij AC 50 Hz | 240 - 240 V |
Nom. voedingsspanning bij AC 60 Hz | 120 - 120 V |
Nom. voedingsspanning bij DC | 110 - 240 V |
Uitgangsspanning geregeld | Ja |
Vermogensafgifte | 240 W |
Gestabiliseerd | Ja |
Uitvoering elektrische aansluiting | Veerklemaansluiting |
Geschikt voor railmontage | Ja |
Wandmontage mogelijk | Nee |
Modulaire uitvoering (voor railmontage) | Ja |
Inbouwhoogte | 225 mm |
Directe montage mogelijk | Nee |
Hoogte | 135 mm |
Diepte | 125 mm |
Beschermingsgraad (IP) | IP20 |
Nom. uitgangsspanning 1 | 24 V |
Inbouwbreedte | 45 mm |
Logistiek
Levertermijn | Verwacht over 4 werkdagen |
Aantal eenheden in artikel | 1 st |
Minimale bestelafname | 1 st |
Standaard voorraadartikel | Nee |
Bruto gewicht | 1,046 kg |
Afmeting verpakking | 0,15 x 0,16 x 0,075 m |
Prijs
Bruto prijs (€) | 196,00 per 1 st |
Duurzaamheid
Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Gelijkstroomvoedingseenheid" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.
