Siemens - Cos phi-relais - 3UG4641-2CS20

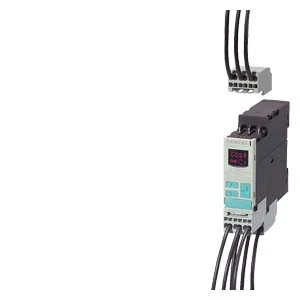

3UG4641-2CS20 DIGITAL MONITORING RELAY

Digital monitoring relay cos phi and current monitoring from 90-690 V AC 0vershoot and undershoot self-supplied 50 to 60 Hz AC Noise pulses delay 0.1 to 20 s Hysteresis for (I) 0.1 to 2 A 2 change-over contacts with or without fault buffer spring-type conn

Digital monitoring relay cos phi and current monitoring from 90-690 V AC 0vershoot and undershoot self-supplied 50 to 60 Hz AC Noise pulses delay 0.1 to 20 s Hysteresis for (I) 0.1 to 2 A 2 change-over contacts with or without fault buffer spring-type connection system Cos phi monitoring relay with digital setting SIRIUS 3UG4 for monitoring the power factor and active current for overshooting, e.g. in the event of soiled filter systems, or for undershooting, e.g. in the event of a torn V-belt or pump idling.Worldwide use thanks to wide voltage range and international certificates. The relay monitors even small single-phase motors with a no-load current below 0.5 A. Implicit monitoring for cable break and phase failure is also possible. The power factor or active current measuring principle can be selected. Less space required in the control cabinet thanks to slim design. Reliable diagnostics thanks to display of ACTUAL value and status messages. All versions with removable terminals.
