Schneider Electric - CEE-koppelcontactstop - PKF16M715

PKF16M715 CEE KOPPELCONT.STOP 16A 5P 110V 4H IP67

PratiKa - Koppelcontactstop - 3P+N+A - 16A - 100-130V AC - 4h - IP67

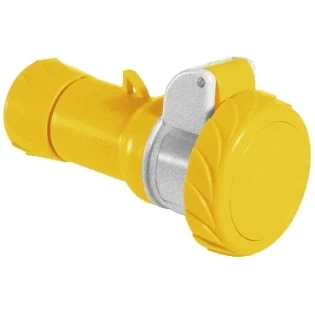

This PratiKa industrial wander socket with captive screws connection is straight. It has 3P+N+E pole, rated current is 16A and the operating voltage is 110VAC. The dimensions of the wander socket are (W) 96mm x (H) 96mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the socket is grey (RAL 7035) with yellow easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 4h.
