Schneider Electric - CEE-contactstop - 83915
Configureer via Schneider Electric Industry Selector
Aanbevelingen
Productomschrijving
83915 CEE CONT.STOP 16A 5P 110V 4H IP67
PratiKa - Contactstop - Faseomkeer. - 3P+N+A - 16A - 100-130V AC - 4h - IP67

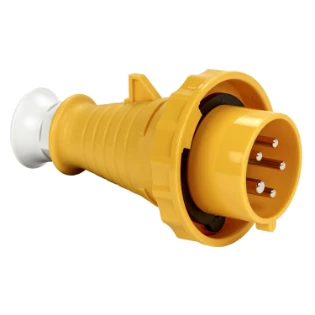

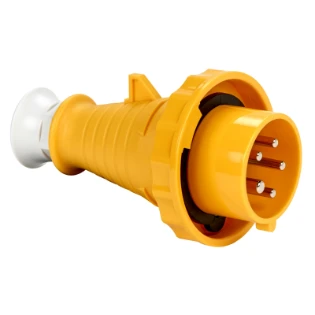

This PratiKa industrial wander plug with phase inverter and with captive screws connection is straight. It has 3P+N+E pole, rated current is 16A and the operating voltage is 100VAC to 130VAC. The dimensions of the wander plug with phase inverter are (W) 87mm x (H) 147.5mm. The degree of protection is IP67. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the plug is grey (RAL 7035) with yellow easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 4h.
Specificaties
Algemeen
| Ons artikelnummer | 2320401 |
| Artikelnummer fabrikant | 83915 |
| EAN-code | 3303430839156 |
| Artikelklasse (ETIM) | CEE-contactstop |
| Merk | Schneider Electric |
| Serie | PratiKa |
| Type nummer | 83915 |
| Omschrijving | CEE CONTACTSTOP 16A 5P 110V 4H IP67 |
| Land van Oorsprong | IT |
Technisch
| IEC-stroomsterkte | 16 A |
| Aantal polen | 3 |
| Spanning volgens EN 60309-2 | 110 V (50+60 Hz) geel |
| Uurstand | 4 h |
| Kenkleur | Geel |
| Met fasewisseling | Nee |
| Beschermingsgraad (IP) | IP67 |
| Aansluittechniek | Schroefklem |
| Kabelinvoer | Schroefwartel |
| Insteekrichting | Recht |
| Materiaal | Kunststof |
| Militaire uitvoering | Nee |
| RAL-nummer | 7035 |
Logistiek
| Aantal eenheden in artikel | 1 st |
| Minimale bestelafname | 1 st |
| Standaard voorraadartikel | Nee |
| Bruto gewicht | 1 kg |
| Afmeting verpakking | 2 x 1 x 1 mm |
Prijs
| Bruto prijs (€) |
