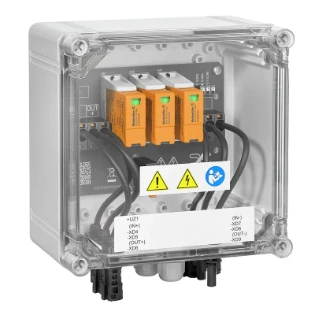

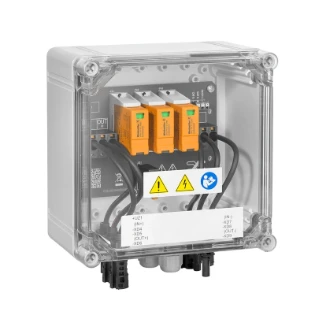

Weidmüller - Fotovoltaische DC Stringbox - PVN1M1I2SXFXV2O2TXPX11

2866310000 COMBINER BOX (PHOTO VOLTAIK), 1100 V, 1 MPPT, 2 INPUTS / 1 OUTPUT PER

Combiner box for inverters with 1 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:2 inputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:20631 output, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063Max. string voltage Uoc: 1100 VDC1 class/type II arrester with signal contactConnection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 236x200x132 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
