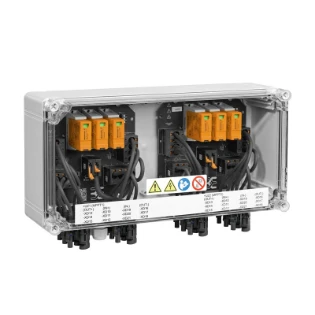

Weidmüller - Fotovoltaische DC Stringbox - PVN DC 3I 3O 2MPP SPD1R WM4 11

2890450000 COMBINER BOX (PHOTO VOLTAIK), 1100 V, 2 MPP'S, 3 INPUTS / 3 OUTPUTS PE

Combiner box for inverters with 2 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:3 inputs, connection via WM4 C connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:20633 outputs, connection via WM4 C connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063MPP2: identical to MPP1Max. string voltage Uoc: 1100 VDC1 class/type I + II combined arrester with signal contactConnection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 240x400x132 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
