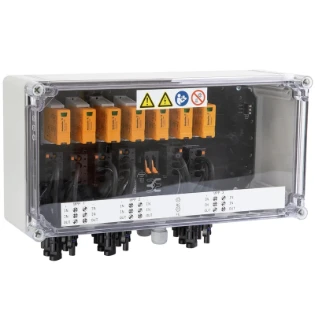

Weidmüller - Fotovoltaische DC Stringbox - PVN DC 2I 1O 3MPP SPD2R EVO 11

2975560000 COMBINER BOX (PHOTO VOLTAIK), 3 MPP'S, 3 INPUTS / 3 OUTPUTS PER MPP, S

Combiner Box (Photovoltaik), 3 MPP's, 3 Inputs / 3 Outputs per MPP, Su

Combiner box for inverters with 3 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:3 inputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:20633 outputs, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063MPP2 to 3:identical to MPP1Max. string voltage Uoc: 1100 VDC1 class/type II arrester with signal contactConnection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 240x400x132 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
