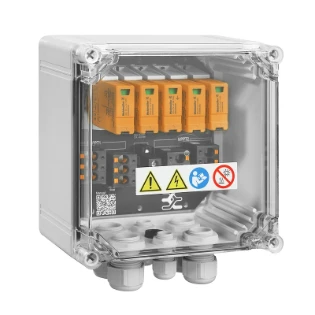

Weidmüller - Fotovoltaische DC Stringbox - PVN DC 2I 1O 2MPP SPD1R CG 11

2866320000 GENERATOR CONNECTIO N BOX, 1100 V, 2 MPP'S, 2 INPUTS / 1 OUTPUT PER MP

Combiner box for inverters with 2 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:2 inputs, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.1 output, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.MPP2: identical to MPP1Max. string voltage Uoc: 1100 VDC1 class/type I + II combined arrester with signal contactConnection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 228x200x132 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
