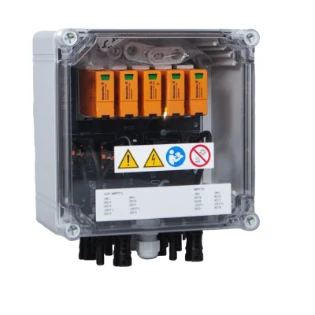

Weidmüller - Fotovoltaische DC Stringbox - PVN DC 1I 1O 2MPP SPD1R EVO 11

2882160000 COMBINER BOX PHOTOVOLTAIK PV NEXT 1100 V 2 MPP'S 1 INPUT / 1 OUT

Combiner box for inverters with 2 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:1 input, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:20631 output, connection via MC4-Evo 2 connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063MPP2: identical to MPP1Max. string voltage Uoc: 1100 VDC1 class/type I + II combined arrester with signal contactConnection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 240x200x132 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
