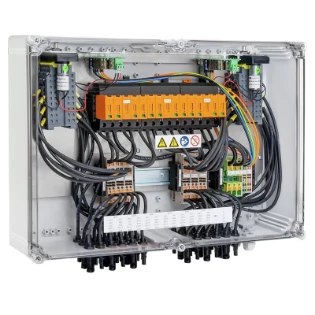

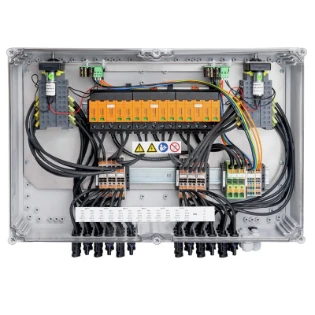

Weidmüller - Fotovoltaische DC Stringbox - PVC DC 2I 1O 6MPP RD SPD1R WM4 11

8000115471 COMBINER BOX (PHOTO VOLTAIK), 1100 V, 6 MPP´S, 2 INPUTS / 1 OUTPUT PER

Combiner box for inverters with Fireman switch and surge protection for the connection to 6 MPP tracker.Suitable for remote disconnection of the DC side by the fire department according to VDE-AR-E2100-712. Max. string voltage Uoc: 1100 VDCIntegrated surge protection with class I+II combined arresters with signal contact.Suitable for protection against overvoltages in a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:2 inputs, connection via WM4 C connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:20631 output, connection via WM4 C connector, compatible with cable type TÜV 2 Pfg1169/08.07 / EN 50618:2063MPP2 to 6:identical to MPP1DC fireman switch: Switching off by undervoltage triping.Switching off by reaching a temperature of >= 100 °C in the housing.Automatic reconnection after the control voltage (230 V AC) is applied again.With signal contact.Connection of the fireman switch control line 230 VAC via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm².Connection of the signal contact 24 VDC (max. 300 mA) via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm².Protection class: IP65.All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 439x600x132 mm.Approval according to low voltage switchgear IEC 61439-1 and EN 61439-2
