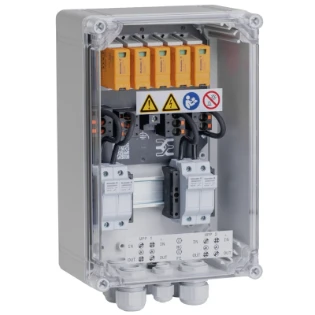

Weidmüller - Fotovoltaische DC Stringbox - PVC DC 1IF 1O 2MPP SPD1R CG 10

8000137870 COMBINER BOX PHOTOVOLTAIK PV NEXT 2 MPP'S 1 INPUT / 1 OUTPUT PER

Combiner box for inverters with 2 MPP tracker, suitable for protecting the DC side of a photovoltaic system according to DIN CLC/TS 51643-32.MPP1:1 input, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.1 output, connection via M25 cable gland with multiple sealing inserts. PUSH IN connection / single-wire, multi-wire, with/without ferrule.MPP2: identical to MPP1Max. string voltage Uoc: 1000 VDC1 class/type I + II combined arrester with signal contactFuse holders for inputs and outputs (fuses 10x38 to be ordered separately)Connection of the signal contact via M16 cable glands (Clamping range 5-10 mmØ) max. conductor cross-section: 1.5 mm²Connection of the functional earth via M16 cable glands (Clamping range 5-10 mmØ) Conductor cross-section: >= 16 mm²Protection class: IP65All built into a glas fibre reinforced polyester housing. Dimensions HxWxD: 335x200x132 mmApproval according to low voltage switchgear and controlgear IEC 61439-1 and EN 61439-2
