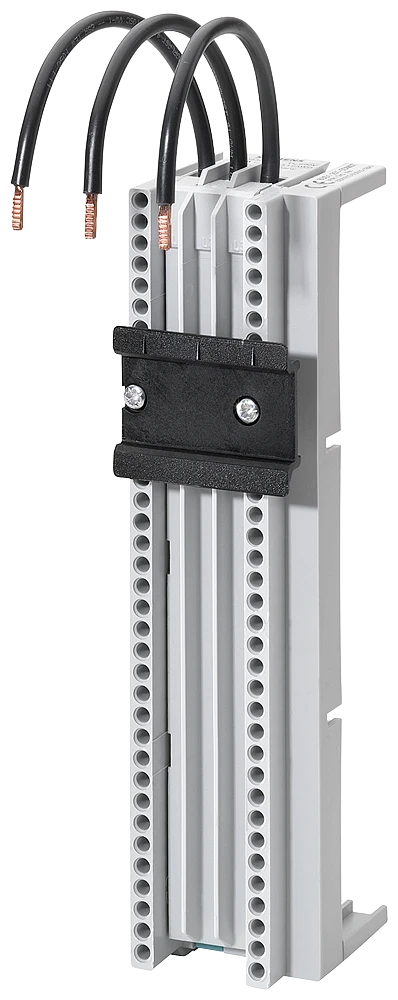

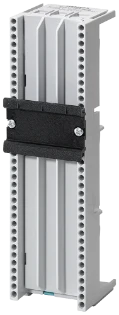

Siemens - Stroomrailadapter - 8US1260-5AM00

8US1260-5AM00 DEVICE HOLDER 60 MM SYSTEM 55MMX182MM

Busbar system Busbar center-to-center spacing 60 mm device holder, Width: 55 mm Bar thickness: 5.10 mm+TT profile Size S00, S0 for lateral mounting to adapter 8US12 Length 182 mm 8US busbar system for setting up protective devices such as fuse switch disco

Busbar system Busbar center-to-center spacing 60 mm device holder, Width: 55 mm Bar thickness: 5.10 mm+TT profile Size S00, S0 for lateral mounting to adapter 8US12 Length 182 mm 8US busbar system for setting up protective devices such as fuse switch disconnectors and circuit breakers - safe, space-saving and clearly laid out. The use of the 8US busbar systems from Siemens gives a number of options for installing rail-adaptable connecting, switching and installation devices. Cost-effective electrotechnical enhancement of modern distribution boards is possible due to their small footprint, compact design and quick assembly contacts. Mounting is on longitudinal stays and the rail gapis 60 mm. Key features of the Siemens 8US busbar systems: 1. Mechanical fixing and electrical contacting in a single step. 2. Worldwide approval and therefore worldwide use in mechanical and plant engineering. 3. Easy replacement of individual devices or entire combinations. 4.
