Siemens - Stroomrailadapter - 8US1251-5CM47

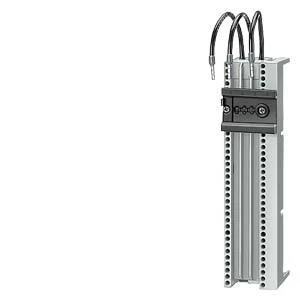

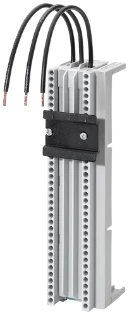

8US1251-5CM47 BUSBAR ADAP. 60MM SYSTEM 45MMX182MM

Busbar system Busbar center-to-center spacing 60 mm Device adapter, Width: 45 mm Bar thickness: 5.10 mm+TT profile for switchgear and motor feeders SIRIUS, S00 with 1 DIN rail 35 mm, 12.5 A with cage clamp connection Cable 2.5 mm2 Length 182 mm 8US busbar

Busbar system Busbar center-to-center spacing 60 mm Device adapter, Width: 45 mm Bar thickness: 5.10 mm+TT profile for switchgear and motor feeders SIRIUS, S00 with 1 DIN rail 35 mm, 12.5 A with cage clamp connection Cable 2.5 mm2 Length 182 mm 8US busbar system for setting up protective devices such as fuse switch disconnectors and circuit breakers - safe, space-saving and clearly laid out. The use of the 8US busbar systems from Siemens gives a number of options for installing rail-adaptable connecting, switching and installation devices. Cost-effective electrotechnical enhancement of modern distribution boards is possible due to their small footprint, compact design and quick assembly contacts. Mounting is on longitudinal stays and the rail gapis 60 mm. Key features of the Siemens 8US busbar systems: 1. Mechanical fixing and electrical contacting in a single step. 2. Worldwide approval and therefore worldwide use in mechanical and plant engineering. 3
