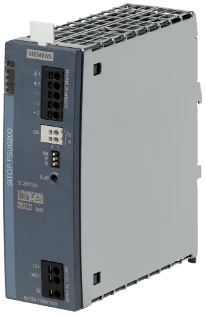

Siemens - Gelijkstroomvoedingseenheid - 6EP3334-7SC00-3AX0
Brutoprijs 266,00

Siemens - Gelijkstroomvoedingseenheid - 6EP3334-7SC00-3AX0 Duurzaam product

Ons artikelnummer
4026981
Artikelnummer fabrikant
6EP33347SC003AX0
Type nummer
6EP3334-7SC00-3AX0
EAN-code
4025515155720

Spanningstype voedingsspanning
AC/DC
1e Secundaire spanning
24 - 24 V
Nom. uitgangsstroom 1
10 A
Max. uitgangsstroom 1
10 A
Breedte
45 mm

266,00
Brutoprijs 266,00
Configureer via Siemens TIA Selection Tool

Productomschrijving

6EP33347SC003AX0 Power supply SITOP PSU6200, single-phase 24 V DC/10 A

SITOP PSU6200 Ex 24 V/10 A stabilized power supply input: 120/230 V AC output: 24 V / 10 A DC with diagnostic interface with painted printed circuit boards The 1-phase SITOP PSU6200 are technology power supplies for demanding solutions and offer maximum fu

SITOP PSU6200 Ex 24 V/10 A stabilized power supply input: 120/230 V AC output: 24 V / 10 A DC with diagnostic interface with painted printed circuit boards The 1-phase SITOP PSU6200 are technology power supplies for demanding solutions and offer maximum functionality for use in complex plants and machines. The wide range input supports connection to each network worldwide and ensures security even during large fluctuations in voltage. The Extra-Power supplies up to 150% of the rated current for short periods of time. In case of an overload, the PSU6200 supplies a constant current up to a voltage of 15 V DC. The very high efficiency keeps the energy consumption and the heat development in the control cabinet at low levels and the entire metal enclosure is also space-saving. To further increase 24 V availability, the SITOP PSU6200 power supplies can be combined with buffer, DC UPS, redundancy and selectivity modules.

Duurzaam product Duurzaam product

Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Gelijkstroomvoedingseenheid" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.


Specificaties

Algemeen

Ons artikelnummer 4026981
Artikelnummer fabrikant 6EP33347SC003AX0
EAN-code 4025515155720
Artikelklasse (ETIM) Gelijkstroomvoedingseenheid
Merk Siemens
Serie
Type nummer 6EP3334-7SC00-3AX0
Omschrijving Power supply SITOP PSU6200, single-phase 24 V DC/10 A
Land van Oorsprong DE

Technisch

Spanningstype voedingsspanning AC/DC
1e Secundaire spanning 24 - 24 V
Nom. uitgangsstroom 1 10 A
Max. uitgangsstroom 1 10 A
Breedte 45 mm
Secundaire spanning instelbaar Ja
Kortsluitvast Ja
Nom. voedingsspanning bij AC 50 Hz 240 - 240 V
Nom. voedingsspanning bij AC 60 Hz 120 - 120 V
Nom. voedingsspanning bij DC 110 - 240 V
Uitgangsspanning geregeld Ja
Vermogensafgifte 240 W
Gestabiliseerd Ja
Uitvoering elektrische aansluiting Veerklemaansluiting
Draagrailmontage mogelijk Ja
Wandmontage mogelijk Nee
Modulaire uitvoering (voor railmontage) Ja
Inbouwhoogte 225 mm
Directe montage mogelijk Nee
Hoogte 135 mm
Diepte 125 mm
Beschermingsgraad (IP) IP20
Nom. uitgangsspanning 1 24 V
Inbouwbreedte 45 mm

Logistiek

Aantal eenheden in artikel 1 st
Minimale bestelafname 1 st
Standaard voorraadartikel Nee
Bruto gewicht 1,041 kg
Afmeting verpakking 0,189 x 0,188 x 0,083 m

Prijs

Bruto prijs (€) 266,00 per 1 st
