Siemens - Draadloze antenne - 6GK5895-6ML00-0AA0
Productomschrijving
6GK5895-6ML00-0AA0

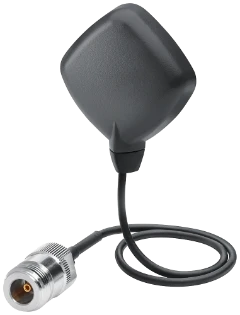

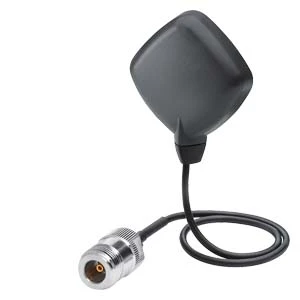

ANT895-6ML GPS antenna Antenna with integrated signal amplifier incl. 0.3 m connection cable and N-Connect female connection; 3 dBi, IP67 (-40...+85 °C) Mounting with magnet or Screw mounting Observe national approvals; compact instructions as hard copy Ge
ANT895-6ML GPS antenna Antenna with integrated signal amplifier incl. 0.3 m connection cable and N-Connect female connection; 3 dBi, IP67 (-40...+85 °C) Mounting with magnet or Screw mounting Observe national approvals; compact instructions as hard copy German/English; scope of delivery: 1x ANT 895-6ML. SCALANCEAntennaAntenna ANT895-6MLFor receiving signals in a global navigation satellite system. These signals help determine the exact position and time of the connected device. Application examples: Time synchronization: Synchronization, e.g. of a church clock with UTC time (Coordinated Universal Time). The time is derived from the data of the GPS signal. Position detection / container tracking: A container can be tracked with the help of GPS position data, for example.Uniform time of all stations in the communication network through synchronization with the satellite time.
Specificaties
Algemeen
Ons artikelnummer | 2416201 |
Artikelnummer fabrikant | 6GK58956ML000AA0 |
EAN-code | 4019169855440 |
Artikelklasse (ETIM) | Draadloze antenne |
Merk | Siemens |
Serie | |
Type nummer | 6GK5895-6ML00-0AA0 |
Omschrijving | Antenna ANT 895-6ML, GPS, integr. amplifier, 3 dBi, N-female, IP67, 0. |
Land van Oorsprong | DE |
Technisch
Indoor | Ja |
Outdoor | Ja |
Antennewinst | 0 dBi |
Max. transmissiebereik | 0 m |
Aansluitwijze | Contrastekker (female) |
Breedte | 52.1 mm |
Met aansluitkabel | Ja |
Lengte aansluitkabel | 0.3 m |
Hoogte | 59.2 mm |
Diepte | 13.6 mm |
Lengte | 0.051 mm |
Aansluiting | N |
Beschermingsgraad (IP) | IP67 |
Omgevingstemperatuur tijdens bedrijf | -40 - 85 °C |
Frequentieband | Overig |
MIMO (Multiple-Input Multiple-Output ) | Nee |
Omnidirectioneel | Nee |
Logistiek
Levertermijn | Verwacht over 34 werkdagen |
Aantal eenheden in artikel | 1 st |
Minimale bestelafname | 1 st |
Standaard voorraadartikel | Nee |
Bruto gewicht | 0,14 kg |
Afmeting verpakking | 0,128 x 0,088 x 0,027 m |
Prijs
Bruto prijs (€) | 105,00 per 1 st |
