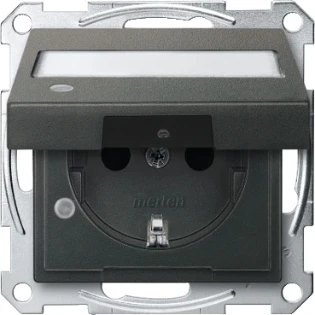

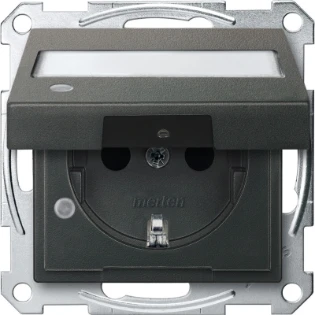

Schneider Electric - Wandcontactdoos - MTN2313-0414
Aanbevelingen
Productomschrijving
MTN2313-0414 WCD RA KLAPD+TKSTV+LMP BSK KV ANTR SYSM
WCD - Klapdeksel - Controlelamp - TV - Kinderbeveiliging - Antraciet - Systeem M
Schneider Electric Merten System M socket outlet MTN2313-0414 is a mechanism with central plate in color anthracite. This socket outlet belongs to M-Arc, M-Elegance, M-Plan, M-Plan glass, M-Smart, M-Star, System M aesthetic group. It is with lighting. The outlet pole configuration of this socket outlet is 2P + E. And it is used in Germany. And it's rated current is 16A. 250V is the rated operational voltage. Its fixing mode is by screws and claws. Its mounting box can be recessed into the surface with flush type. The socket outlet is made of polycarbonate, making it as resistant as possible. Besides, the IP rating of this device is IP20. This socket outlet is SVHC (substances of very high concern) free too. And it is halogen free. In addition, this socket outlet is specially designed for residential, small commercial, facilitating the daily needs easily and safely. System M range is based on 4 different surfaces and materials.
Specificaties
Algemeen
Ons artikelnummer | 2323513 |
Artikelnummer fabrikant | MTN2313-0414 |
EAN-code | 3606480304200 |
Artikelklasse (ETIM) | Wandcontactdoos |
Merk | Schneider Electric |
Serie | Merten Systeem M |
Type nummer | MTN2313-0414 |
Omschrijving | SYS-M WCD BZK RA LAMP KV TXT KLEP ANTRAC |
Land van Oorsprong |
Technisch
Uitvoering | Randaarde (type F) |
Aantal eenheden | 1 |
Aantal contactdozen schakelbaar | 0 |
Uitvoeringsvorm afdekking | Centraalplaat |
Opdruk/indicatie | Zonder opdruk |
Aansluitwijze | Steekklem |
Met klapdeksel | Ja |
Met verhoogde aanraakbeveiliging | Ja |
Tekstveld/beschrijvingsvlak | Ja |
Kleur | Antraciet |
RAL-Nummer (vergelijkbaar) | 7024 |
Transparant | Nee |
Afsluitbaar | Nee |
Uitwerpmechanisme | Nee |
Met functieverlichting | Ja |
Met oriëntatieverlichting | Nee |
Overspanningsbeveiliging | Nee |
Foutstroombeveiliging | Nee |
Met glaszekering | Nee |
Speciale voeding | Geen speciale voeding |
Montagewijze | Inbouw (stucwerk) |
Bevestigingswijze | Klauw-/schroefbevestiging |
Materiaal | Kunststof |
Materiaalkwaliteit | Thermoplast |
Halogeenvrij | Ja |
Oppervlaktebescherming | Onbehandeld |
Uitvoering oppervlakte | Mat |
Stekkerstand gedraaid | Nee |
Nom. stroom | 16 A |
Nom. spanning | 250 V |
Fase-aftakking | Geen |
Geschikt voor beschermingsgraad (IP) | IP20 |
Voor "verzwarende omstandigheden" (conform VDE) | Nee |
Schakelmateriaalbreedte | 71 mm |
Schakelmateriaalhoogte | 71 mm |
Schakelmateriaaldiepte | 47 mm |
Met ingebouwde USB voeding | Nee |
Geïsoleerde montage | Ja |
Met aan/uitschakelaar | Nee |
Met doorlusvoorziening | Ja |
Beschermingscontact | Ja |
Rond aardingscontact | Nee |
Aantal actieve contacten (rond) | 0 |
Aantal actieve contacten (vlak) | 0 |
Met signaallamp | Ja |
Aantal fasen | 1 |
Antibacteriële behandeling | Nee |
Logistiek
Aantal eenheden in artikel | 1 st |
Minimale bestelafname | 1 st |
Standaard voorraadartikel | Nee |
Bruto gewicht | 0,103 kg |
Afmeting verpakking | 7,6 x 7,6 x 5,3 cm |
Prijs
Bruto prijs (€) |
