Schneider Electric - Magneetschakelaar - LC1D093BD
Aanbevelingen
Productomschrijving

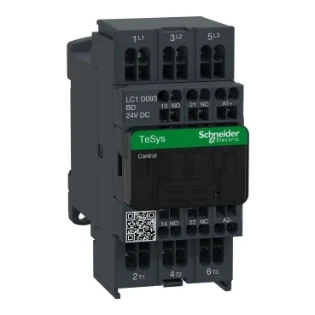

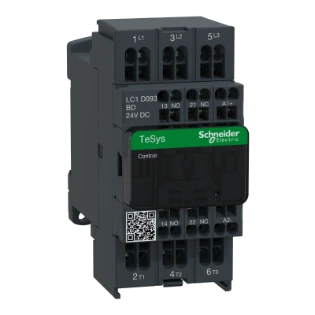

LC1-D093BD CONT 9A 1S+1O 24VDC VEERKLEM
Deze TeSys D contactor is voorzien van 3 polen (3NO) en is geschikt voor motorbesturingstoepassingen tot 9A/690V AC-3 (4kW@400V). Het is voorzien van een 24V DC spoel met transiënte onderdrukkingsmodule, 1NO + 1NC ingebouwde hulpcontacten (NC-spiegel gecertificeerd) en aansluiting via veerklemmen. Tot aan bedrijfssnelheden tot 3600 cycli/uur en omgevingen tot 60°C zijn een hoge betrouwbaarheid en duurzaamheid gegarandeerd bij veeleisende toepassingen. Compacte bouwvorm met een breedte van 45mm. Geschikt voor montage op een DIN-rail of via schroefbevestiging. Multi-standaard gecertificeerd (IEC, UL, CSA, CCC, EAC, Marine) en voorzien van het Green Premium ecolabel (RoHs/Reach).
Specificaties
Algemeen
| Ons artikelnummer | 1106575 |
| Artikelnummer fabrikant | LC1D093BD |
| EAN-code | 3389110805703 |
| Artikelklasse (ETIM) | Magneetschakelaar |
| Merk | Schneider Electric |
| Serie | TeSys D |
| Type nummer | LC1D093BD |
| Omschrijving | TeSys D - Contactor 3M - HC: M+V - AC-3<=440V 9A - Stuurspanning: 24V |
| Land van Oorsprong | ID |
Technisch
| Nom. vermogen bij AC-3, 400 V | 4 kW |
| Type stuurspanning | DC |
| Nom. stuurspanning bij DC | 24 - 24 V |
| Aantal hoofdcontacten als maakcontact | 3 |
| Aantal hoofdcontacten als verbreekcontact | 0 |
| Aantal hulpcontacten als maakcontact | 1 |
| Aantal hulpcontacten als verbreekcontact | 1 |
| Nom. bedrijfsstroom Ie bij AC-1, 400 V | 20 A |
| Nom. bedrijfsstroom Ie bij AC-3, 400 V | 9 A |
| Nom. bedrijfsstroom Ie bij AC-4, 400 V | 6 A |
| Nom. vermogen bij AC-4, 400 V | 2.2 kW |
| Modulaire uitvoering (voor railmontage) | Nee |
| Aansluitwijze hoofdstroomcircuit | Veerklemaansluiting |
Logistiek
| Levertermijn | Verwacht over 4 werkdagen |
| Aantal eenheden in artikel | 1 st |
| Minimale bestelafname | 1 st |
| Standaard voorraadartikel | Nee |
| Bruto gewicht | 0,55 kg |
| Afmeting verpakking | 12,2 x 10,5 x 5,5 CMT |
| Volle verpakking bevat | 15 st |
Prijs
| Bruto prijs (€) | 94,50 per 1 st |
