Schneider Electric - Doos voor montage op de wand/plafond - ENN05099
Brutoprijs 76,45

Schneider Electric - Doos voor montage op de wand/plafond - ENN05099

Ons artikelnummer
2325329
Artikelnummer fabrikant
ENN05099
Type nummer
ENN05099
EAN-code
3295150050990

Max. aderdoorsnede
40 mm²
Uitgerust met
Overig
Vorm
Rechthoekig
Montagewijze
Wand-/plafondmontage
Voor buisdiameter
Overig


Aanbevelingen

Gerelateerde producten

Productomschrijving

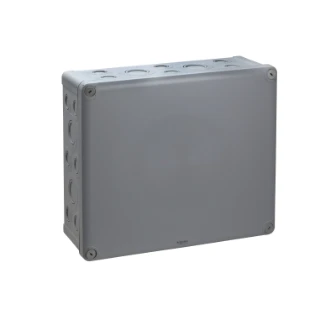

ENN05099 PP KVDOOS 325X275X120MM GRIJS

Mureva - Kabeldoos - Uitstoters 24xM20/25 + 8xM25/32 - 325x175x120mm

This rectangular surface mounted junction box ENN05099 comes with 24 knock-outs M20/25 and 8 M32/40 along with quarter-turn screw-fixed cover Color grey, dimensions: width 342 mm, height 292 mm, depth 129 mm Including screw collar caps for extra protection of the screw heads Mechanical protection IK07, flame resistance 750 °C Material: body and cover PP (polypropylene) This surface mounted box is classified IP55 that provides safe installations in rough environments, indoors as well as outdoors, exposed to water and dust like Industry, farms, parking facilities or even a bathroom at home Sometimes you need electricity where it really should be impossible to install it, like in wet or dusty places, or where electricity has not been planned at all You needn’t worry! Since the Mureva boxes from Schneider Electric thoroughly satisfy any high safety requirement that the business might have, all surface mounted installations can be made irrespective of environment or safety needs The boxes a


Specificaties

Algemeen

Ons artikelnummer 2325329
Artikelnummer fabrikant ENN05099
EAN-code 3295150050990
Artikelklasse (ETIM) Doos voor montage op de wand/plafond
Merk Schneider Electric
Serie Mureva opbouwdozen
Type nummer ENN05099
Omschrijving MUREVA KABELDOOS 24M20/25 325X275X120 GR
Land van Oorsprong

Technisch

Max. aderdoorsnede 40 mm²
Uitgerust met Overig
Vorm Rechthoekig
Montagewijze Wand-/plafondmontage
Voor buisdiameter Overig
Breedte 340 mm
Achterinvoer Nee
Lengte 125 mm
Diepte 290 mm
Rijgbaar Nee
Aantal invoeren 32
Type behuizingsdoorvoer Uitbreekpoort
Materiaal Kunststof
Halogeenvrij Ja
Oppervlaktebescherming Onbehandeld
Kleur Grijs
Beschermingsgraad (IP) IP55
Deksel Niet transparant
Dekselbevestiging Geschroefd
Verzegelbaar Nee
Functiebehoud Geen
Met afscherming Nee
Weersbestendig Ja
Explosiegeteste uitvoering Nee
Voor explosieveilige zone gas Geen
Voor explosieveilige zone stof Geen
Uitvoering deksel Blinddeksel
Toepasbaar met giethars Nee
Giethars meegeleverd Nee
Bedrijfstemperatuur -25 - 40 °C
Gebruikstemperatuur -25 - 40 °C
Montage in de grond Nee
Montage onder water Nee
Transparant deksel Nee

Logistiek

Aantal eenheden in artikel 1 st
Minimale bestelafname 1 st
Standaard voorraadartikel Nee
Bruto gewicht 1,16 kg
Afmeting verpakking 340 x 125 x 290 mm

Prijs

Bruto prijs (€) 76,45 per 1 st
