Schneider Electric - Doos voor montage op de wand/plafond - ENN05090
Aanbevelingen
Productomschrijving
ENN05090 PP KVDOOS 175X150X80MM GRIJS D
Mureva - Kabeldoos - Uitstoters 8xM12/16 + 4xM20/25+2xM25/32 - 175x150x80mm

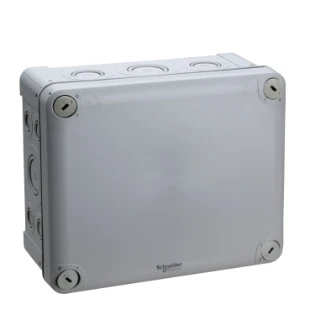

This rectangular surface mounted junction box ENN05090 comes with 8 knock-outs M12/16, 4 M20/25 and 4 M25/32 along with quarter-turn screw-fixed cover Color grey, dimensions: width 193 mm, height 164 mm, depth 88 mm Including screw collar caps for extra protection of the screw heads Mechanical protection IK07, flame resistance 750 °C Material: body and cover PP (polypropylene) This surface mounted box is classified IP55 that provides safe installations in rough environments, indoors as well as outdoors, exposed to water and dust like Industry, farms, parking facilities or even a bathroom at home Sometimes you need electricity where it really should be impossible to install it, like in wet or dusty places, or where electricity has not been planned at all You needn’t worry! Since the Mureva boxes from Schneider Electric thoroughly satisfy any high safety requirement that the business might have, all surface mounted installations can be made irrespective of environment or safety needs The
Specificaties
Algemeen
Ons artikelnummer | 2325326 |
Artikelnummer fabrikant | ENN05090 |
EAN-code | 3295150050907 |
Artikelklasse (ETIM) | Doos voor montage op de wand/plafond |
Merk | Schneider Electric |
Serie | Mureva opbouwdozen |
Type nummer | ENN05090 |
Omschrijving | MUREVA KABELDOOS 8 M12/16 175X150X80 GR |
Land van Oorsprong |
Technisch
Max. aderdoorsnede | 32 mm² |
Uitgerust met | Geen |
Vorm | Rechthoekig |
Montagewijze | Wand-/plafondmontage |
Voor buisdiameter | 32 mm |
Breedte | 163 mm |
Achterinvoer | Ja |
Lengte | 193 mm |
Diepte | 88 mm |
Rijgbaar | Nee |
Aantal invoeren | 16 |
Type behuizingsdoorvoer | Uitbreekpoort |
Materiaal | Kunststof |
Halogeenvrij | Ja |
Oppervlaktebescherming | Onbehandeld |
Kleur | Grijs |
Beschermingsgraad (IP) | IP55 |
Deksel | Niet transparant |
Dekselbevestiging | Geschroefd |
Verzegelbaar | Nee |
Functiebehoud | Geen |
Met afscherming | Nee |
Weersbestendig | Ja |
Explosiegeteste uitvoering | Nee |
Voor explosieveilige zone gas | Geen |
Voor explosieveilige zone stof | Geen |
Uitvoering deksel | Blinddeksel |
Toepasbaar met giethars | Nee |
Giethars meegeleverd | Nee |
Bedrijfstemperatuur | -25 - 40 °C |
Gebruikstemperatuur | -25 - 40 °C |
Montage in de grond | Nee |
Montage onder water | Nee |
Transparant deksel | Nee |
Logistiek
Aantal eenheden in artikel | 1 st |
Minimale bestelafname | 1 st |
Standaard voorraadartikel | Nee |
Bruto gewicht | 0,401 kg |
Afmeting verpakking | 90 x 190 x 165 mm |
Prijs
Bruto prijs (€) | 22,60 per 1 st |
