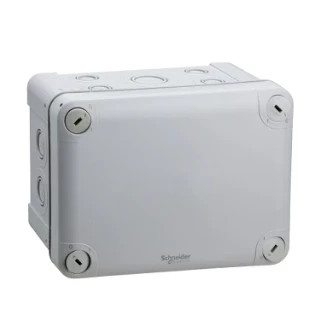

Schneider Electric - Doos voor montage op de wand/plafond - ENN05087
Brutoprijs 15,45

Schneider Electric - Doos voor montage op de wand/plafond - ENN05087

Ons artikelnummer
2325325
Artikelnummer fabrikant
ENN05087
Type nummer
ENN05087
EAN-code
3295150050877

Max. aderdoorsnede
25 mm²
Uitgerust met
Overig
Vorm
Rechthoekig
Montagewijze
Wand-/plafondmontage
Voor buisdiameter
20/25 mm


Aanbevelingen

Gerelateerde producten

Productomschrijving

ENN05087 PP KVDOOS 150X105X80MM GRIJS D

Mureva - Kabeldoos - Uitstoters 8xM12/16 + 4xM16/20+2xM20/25 - 150x105x80mm

This rectangular surface mounted junction box ENN05087 comes with 8 knock-outs M12/16, 4 M16/20 and 2 M20/25 along with quarter-turn screw-fixed cover Color grey, dimensions: width 164 mm, height 121 mm, depth 87 mm Including screw collar caps for extra protection of the screw heads Mechanical protection IK07, flame resistance 750 °C Material: body and cover PP (polypropylene) This surface mounted box is classified IP55 that provides safe installations in rough environments, indoors as well as outdoors, exposed to water and dust like Industry, farms, parking facilities or even a bathroom at home Sometimes you need electricity where it really should be impossible to install it, like in wet or dusty places, or where electricity has not been planned at all You needn’t worry! Since the Mureva boxes from Schneider Electric thoroughly satisfy any high safety requirement that the business might have, all surface mounted installations can be made irrespective of environment or safety needs The


Specificaties

Algemeen

Ons artikelnummer 2325325
Artikelnummer fabrikant ENN05087
EAN-code 3295150050877
Artikelklasse (ETIM) Doos voor montage op de wand/plafond
Merk Schneider Electric
Serie Mureva opbouwdozen
Type nummer ENN05087
Omschrijving MUREVA KABELDOOS 8 M12/16 150X105X80 GR
Land van Oorsprong

Technisch

Max. aderdoorsnede 25 mm²
Uitgerust met Overig
Vorm Rechthoekig
Montagewijze Wand-/plafondmontage
Voor buisdiameter 20/25 mm
Breedte 85 mm
Achterinvoer Ja
Lengte 120 mm
Diepte 165 mm
Rijgbaar Nee
Aantal invoeren 14
Type behuizingsdoorvoer Uitbreekpoort
Materiaal Kunststof
Halogeenvrij Ja
Oppervlaktebescherming Onbehandeld
Kleur Grijs
Beschermingsgraad (IP) IP55
Deksel Niet transparant
Dekselbevestiging Geschroefd
Verzegelbaar Nee
Functiebehoud Geen
Met afscherming Nee
Weersbestendig Ja
Explosiegeteste uitvoering Nee
Voor explosieveilige zone gas Geen
Voor explosieveilige zone stof Geen
Uitvoering deksel Blinddeksel
Toepasbaar met giethars Nee
Giethars meegeleverd Nee
Bedrijfstemperatuur -25 - 40 °C
Gebruikstemperatuur -25 - 40 °C
Montage in de grond Nee
Montage onder water Nee
Transparant deksel Nee

Logistiek

Aantal eenheden in artikel 1 st
Minimale bestelafname 1 st
Standaard voorraadartikel Nee
Bruto gewicht 0,28 kg
Afmeting verpakking 85 x 120 x 165 mm
Volle verpakking bevat 40 st

Prijs

Bruto prijs (€) 15,45 per 1 st
