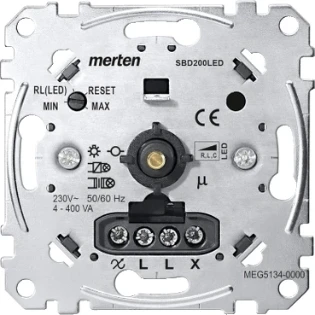

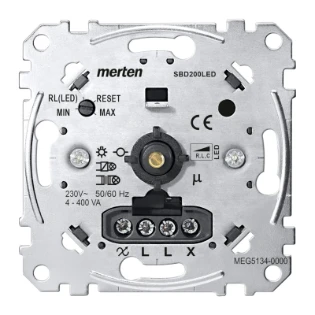

Schneider Electric - Dimmer - MEG5134-0000

MEG5134-0000 DRAAIDIMMER UNI. LED 400W

Universal rotary dimmer insert for LED lamps. For ohmic, inductive or capacitive loads, e.g. dimmable LED lamps, incandescent lamps, dimmable wound transformers or electronic transformers. Leading or trailing edge. The universal dimmer automatically recogn

Universal rotary dimmer insert for LED lamps. For ohmic, inductive or capacitive loads, e.g. dimmable LED lamps, incandescent lamps, dimmable wound transformers or electronic transformers. Leading or trailing edge. The universal dimmer automatically recognises the connected load. Do not connect any mixed loads. With push button two-way switch. With claw and screw fixing. With screw terminals. Nominal voltage: AC 230 V, 50/60 Hz. Switching capacity: LED lamps : 4-200 VA (RC-mode). 4-40 VA (RL-LED-mode). Incandescent lamps: 4-400 W. Halogenlamps: 4-400 W (230 V). 4-400 VA (LV with dimmable wound transformer). 4-400 VA (LV with dimmable electronic transformer). Neutral conductor: not required. Connecting terminals: Screw terminals for max. 2.5 mm². Protection: 16 A circuit breaker. Properties: Short-circuit-proof. Overload-proof. Soft start.-Resistant to overheating. Automatic load detection. Min. / max. settings. Manual load settings (RL-LED-mode).

Duurzaam product

Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Dimmer" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.
