Schneider Electric - CEE-wandcontactdoos - 83101

83101 CEE WANDCONT.DOOS 16A 3P 110V 4H IP44

PratiKa - Wandcontactdoos - Gehoekt - 2P+A - 16A - 100-130V AC - 4h - IP44

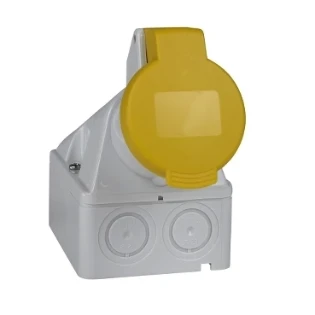

This Pratika industrial socket with completely loosened captive screws connection is wall mounted. It has 2P+E poles, rated current is 16A and the operating voltage is 110VAC. The dimensions of the base plate are (W) 80mm x (H) 100mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 4mm². The color of the socket is light grey (RAL 7035) with yellow easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 4h.
