Schneider Electric - CEE-toestelcontactstop - 83878

83878 CEE INBOUWCONT.STOP 16A 4P 220V 9H IP6

PratiKa - Industriele inbouwcontactstop - 3P+A - 16A - 200-250V AC - 9h - IP67

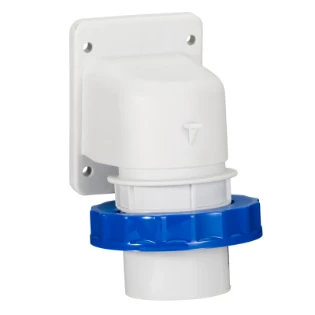

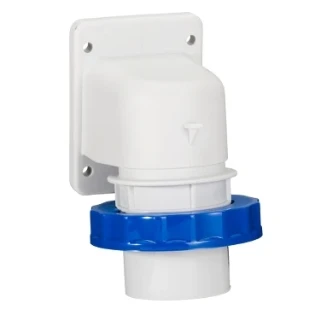

This PratiKa industrial plug with captive screws connection is angled panel-mounted. It has 3P+E pole, rated current is 16A and the operating voltage is 200VAC to 250VAC. The dimensions of the base plate are (W) 65mm x (H) 85mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the plug is grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 9h.
