Schneider Electric - CEE-toestelcontactstop - 83526
Brutoprijs Niet meer leverbaar

Schneider Electric - CEE-toestelcontactstop - 83526

Ons artikelnummer
2320317
Artikelnummer fabrikant
83526
Type nummer
83526
EAN-code
3303430835264

IEC-stroomsterkte
16 A
Aantal polen
3
Spanning volgens EN 60309-2
110 V (50+60 Hz) geel
Uurstand
4 h
Kenkleur
Geel

Niet meer leverbaar
Brutoprijs Niet meer leverbaar
Configureer via Schneider Electric Industry Selector

Productomschrijving

83526 CEE WANDCONT.STOP 16A 4P 110V 4H IP44

PratiKa - Wandcontactstop - Faseomkeer. - 3P+A - 16A - 100-130V AC - 4h - IP44

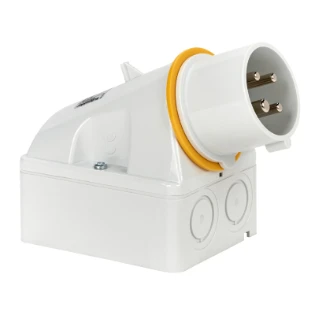

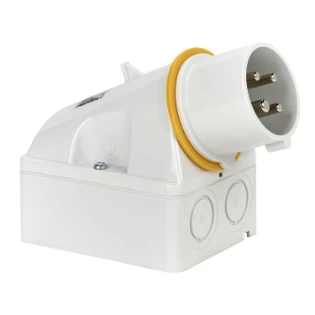

This PratiKa industrial plug with captive screws connection is angled wall-mounted. It has 3P+E pole, rated current is 16A and the operating voltage is 100VAC to 130VAC. The dimensions of the base plate are (W) 80mm x (H) 100mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The size of the cable entries in 16A is 8mm to 15mm for 1mm² to 4mm² cables. The color of the plug is grey (RAL 7035) with yellow easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 4h.

Dit artikel is niet meer leverbaar. Neem contact met ons op.

Specificaties

Algemeen

Ons artikelnummer 2320317
Artikelnummer fabrikant 83526
EAN-code 3303430835264
Artikelklasse (ETIM) CEE-toestelcontactstop
Merk Schneider Electric
Serie PratiKa
Type nummer 83526
Omschrijving CEE WANDCONT.STOP 16A 4 110V 4H IP44FASE
Land van Oorsprong IT

Technisch

IEC-stroomsterkte 16 A
Aantal polen 3
Spanning volgens EN 60309-2 110 V (50+60 Hz) geel
Uurstand 4 h
Kenkleur Geel
Beschermingsgraad (IP) IP44
Aansluittechniek Schroefklem
Bouwvorm Opbouwapparaatstekker
Met fasewisseling Nee
Insteekrichting Schuin (gehoekt)
Materiaal Kunststof
Militaire uitvoering Nee
RAL-nummer 7035
Nom. spanning 100 - 130 V
Nom. (meet)frequentie 50 - 60 Hz

Logistiek

Aantal eenheden in artikel 1 st
Minimale bestelafname 1 st
Standaard voorraadartikel Nee
Bruto gewicht 1 kg
Afmeting verpakking 2 x 1 x 1 mm
