Schneider Electric - CEE-contactdoos, aanbouw - PKY16F435
Aanbevelingen
Productomschrijving

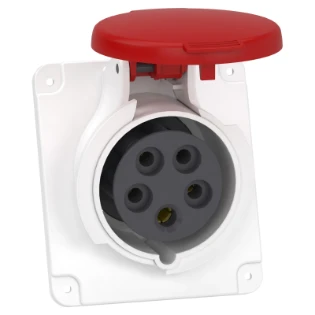

PKY16F435 CEE INB.WCD 16A 5P INBOUW WCD CEE IP44 HOEK SNIJ
PratiKa - Contactdoos FAST - Gehoekt - 3P+N+A - 16A - 380-415V AC - 6h - IP44
Deze Pratika industriële aansluiting met snelle aansluiting is gemonteerd op een hoekpaneel. Hij heeft 3P+N+E-polen, een nominale stroom van 16A en een bedrijfsspanning van 400VAC. De afmetingen van de basisplaat zijn (B) 90x(H) 100mm. De beschermingsgraad is IP44 en IK08. De brandwerendheid is 850°C. De kabelingangen zijn voor flexibele of stijve kabels. De dwarsdoorsnede van de kabels in 16A is 1mm² tot 2,5mm². De kleur van de contactdoos is lichtgrijs (RAL 7035) met rode gemakkelijke identificatie van de werkende spanning. De frequentie is 50Hz of 60Hz. De klokpositie van het contact is 6u.
Specificaties
Algemeen
Ons artikelnummer | 1046954 |
Artikelnummer fabrikant | PKY16F435 |
EAN-code | 3303432011017 |
Artikelklasse (ETIM) | CEE-contactdoos, aanbouw |
Merk | Schneider Electric |
Serie | Kaedra Box , Kaedra MC |
Type nummer | PKY16F435 |
Omschrijving | CEE CTACTDOOSF 16A 5P 400V 6H IP44 HOEK |
Land van Oorsprong | IT |
Technisch
IEC-stroomsterkte | 16 A |
Aantal polen | 5 |
Spanning volgens EN 60309-2 | 400 V (50+60 Hz) rood |
Uurstand | 6 h |
Kenkleur | Rood |
Beschermingsgraad (IP) | IP44 |
Aansluittechniek | Schroefloze klem |
Insteekrichting | Schuin (gehoekt) |
Materiaal | Kunststof |
Militaire uitvoering | Nee |
Flensmaat verticaal | 100 mm |
Boorgatafstand verticaal | 85 mm |
Flensmaat horizontaal | 90 mm |
Boorgatafstand horizontaal | 77 mm |
RAL-nummer | 7035 |
Kabelinvoer | Geen |
Nom. spanning | 380 - 415 V |
Nom. (meet)frequentie | 50 - 60 Hz |
Logistiek
Aantal eenheden in artikel | 1 st |
Minimale bestelafname | 1 st |
Standaard voorraadartikel | Nee |
Bruto gewicht | 0,182 kg |
Afmeting verpakking | 9 x 10 x 9,8 cm |
Prijs
Bruto prijs (€) | 15,90 per 1 st |
