Schneider Electric - CEE-contactdoos, aanbouw - PKF32G715
Brutoprijs Niet meer leverbaar

Schneider Electric - CEE-contactdoos, aanbouw - PKF32G715

Ons artikelnummer
2323036
Artikelnummer fabrikant
PKF32G715
Type nummer
PKF32G715
EAN-code
3303432033682

IEC-stroomsterkte
32 A
Aantal polen
5
Spanning volgens EN 60309-2
110 V (50+60 Hz) geel
Uurstand
4 h
Kenkleur
Geel

Niet meer leverbaar
Brutoprijs Niet meer leverbaar
Configureer via Schneider Electric Industry Selector

Productomschrijving

PKF32G715 CEE INBOUWCONT.DOOS 32A 5P 110V 4H IP67

PratiKa - Wandcontactdoos - Recht - 3P+N+A - 32A - 100-130V AC - 4h - IP67

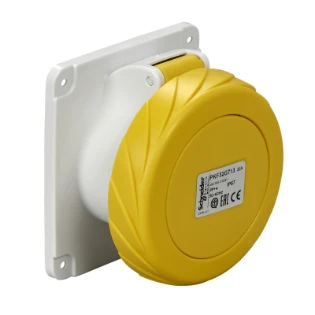

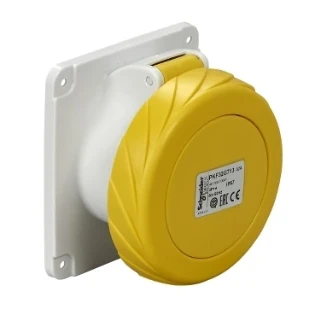

This PratiKa industrial socket with captive screws connection is straight panel-mounted. It has 3P+N+E pole, rated current is 32A and the operating voltage is 100VAC to 130VAC. The dimensions of the base plate are (W) 90mm x (H) 100mm. The degree of protection is IP67 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 32A is 2.5mm² to 10mm² cables. The color of the socket is grey (RAL 7035) with yellow easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 4h.

Dit artikel is niet meer leverbaar. Neem contact met ons op.

Specificaties

Algemeen

Ons artikelnummer 2323036
Artikelnummer fabrikant PKF32G715
EAN-code 3303432033682
Artikelklasse (ETIM) CEE-contactdoos, aanbouw
Merk Schneider Electric
Serie PratiKa
Type nummer PKF32G715
Omschrijving CEE CTACTDOOS 32A 5P 110V 4H IP67 RECHT
Land van Oorsprong

Technisch

IEC-stroomsterkte 32 A
Aantal polen 5
Spanning volgens EN 60309-2 110 V (50+60 Hz) geel
Uurstand 4 h
Kenkleur Geel
Beschermingsgraad (IP) IP67
Aansluittechniek Schroefklem
Insteekrichting Recht
Materiaal Kunststof
Militaire uitvoering Nee
Flensmaat verticaal 100 mm
Flensmaat horizontaal 90 mm
Boorgatafstand horizontaal 77 mm
RAL-nummer 7035
Kabelinvoer Geen
Nom. spanning 100 - 130 V
Nom. (meet)frequentie 50 - 60 Hz

Logistiek

Aantal eenheden in artikel 1 st
Minimale bestelafname 1 st
Standaard voorraadartikel Nee
Bruto gewicht 0,24 kg
Afmeting verpakking 27 x 26,3 x 12 cm
