Schneider Electric - CEE-contactdoos, aanbouw - PKF16G425

PKF16G425 CEE INBOUWCONT.DOOS 16A 5P 220V 9H IP44

PratiKa - Wandcontactstop - Recht - 3P+N+A - 16A - 200-250V AC - 9h - IP44

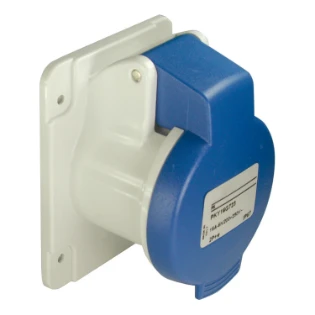

This Pratika industrial socket with captive screws connection is straight panel mounted. It has 3P+N+E poles, rated current is 16A and the operating voltage is 230VAC. The dimensions of the base plate are (W) 90mm x (H) 100mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 4mm². The color of the socket is light grey (RAL 7035) with blue easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 9h.
