Schneider Electric - CEE-contactdoos, aanbouw - PKF16G414

PKF16G414 CEE INBOUWCONT.DOOS 16A 4P 110V 4H IP44

PratiKa - Wandcontactstop - Recht - 3P+A - 16A - 100-130V AC - 4h - IP44

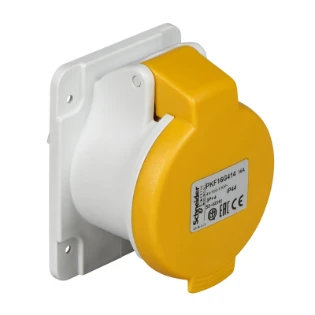

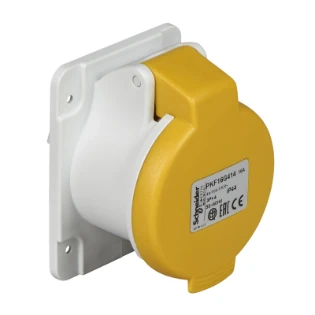

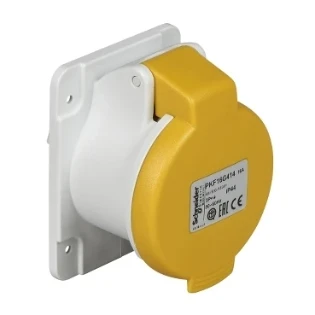

This PratiKa industrial socket with captive screws connection is straight panel-mounted. It has 3P+E pole, rated current is 16A and the operating voltage is 100VAC to 130VAC. The dimensions of the base plate are (W) 65mm x (H) 85mm. The degree of protection is IP44 and IK08. The fire resistance is 850°C. The cable entries are for flexible or rigid cables. The cross section of the cables in 16A is 1mm² to 4mm² cables. The color of the socket is grey (RAL 7035) with yellow easy identification of the operating voltage. The frequency is 50Hz or 60Hz. The clock position of contact is 4h.
