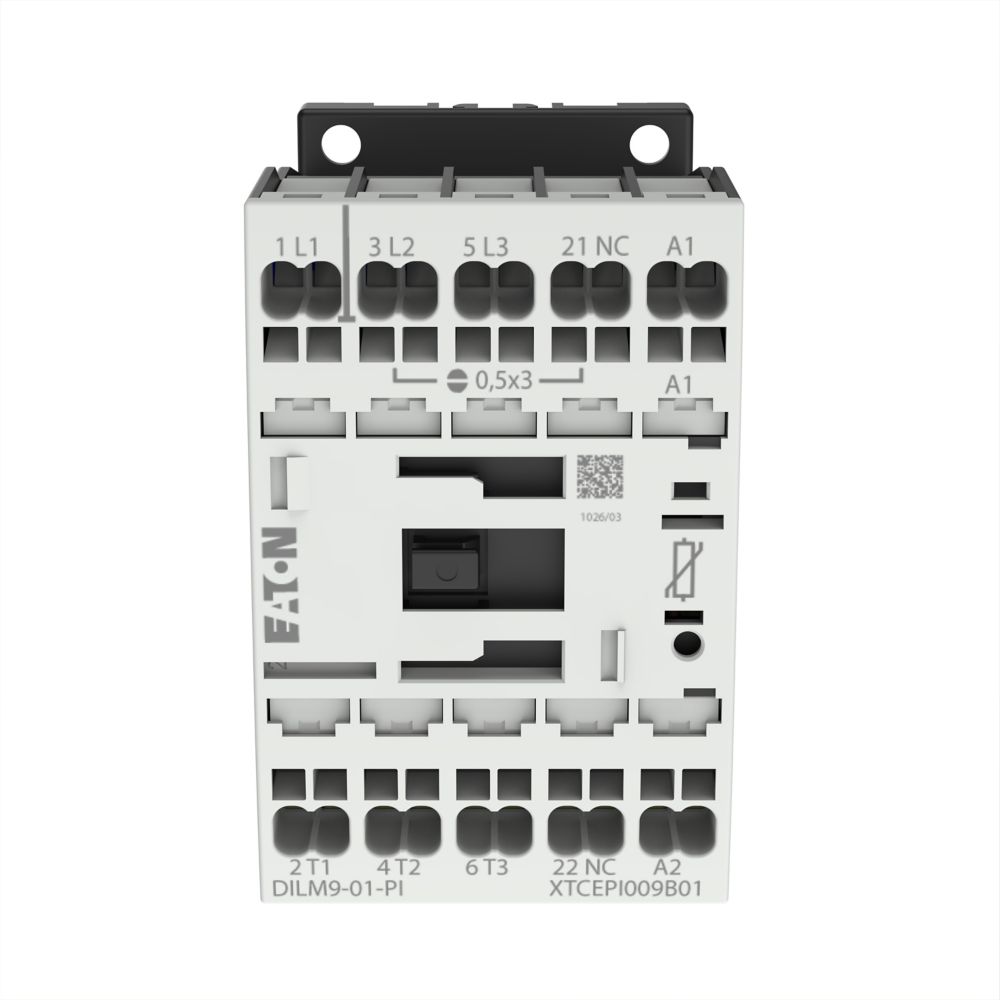

Eaton - Magneetschakelaar - DILM9-01(24VDC)-PI
Aanbevelingen

Productomschrijving

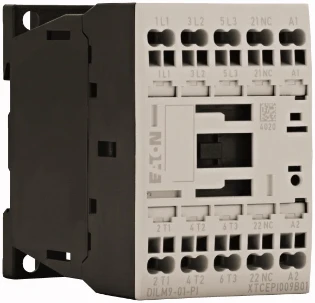

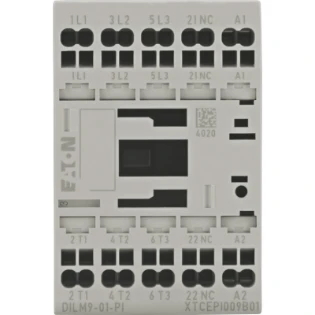

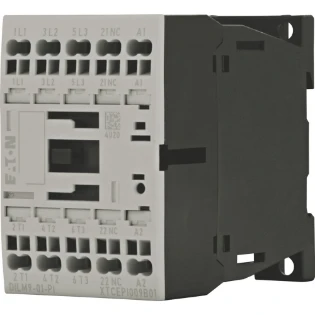

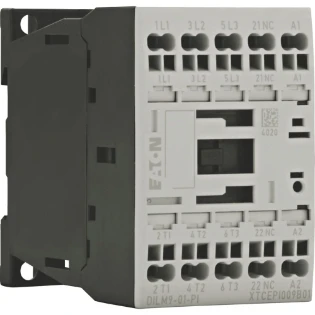

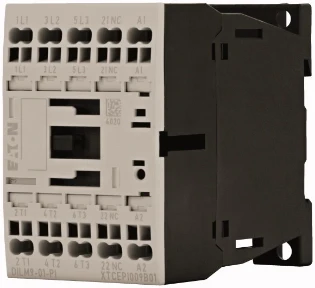

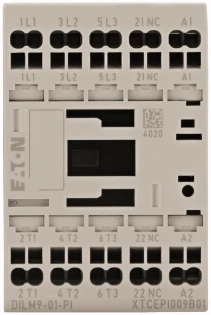

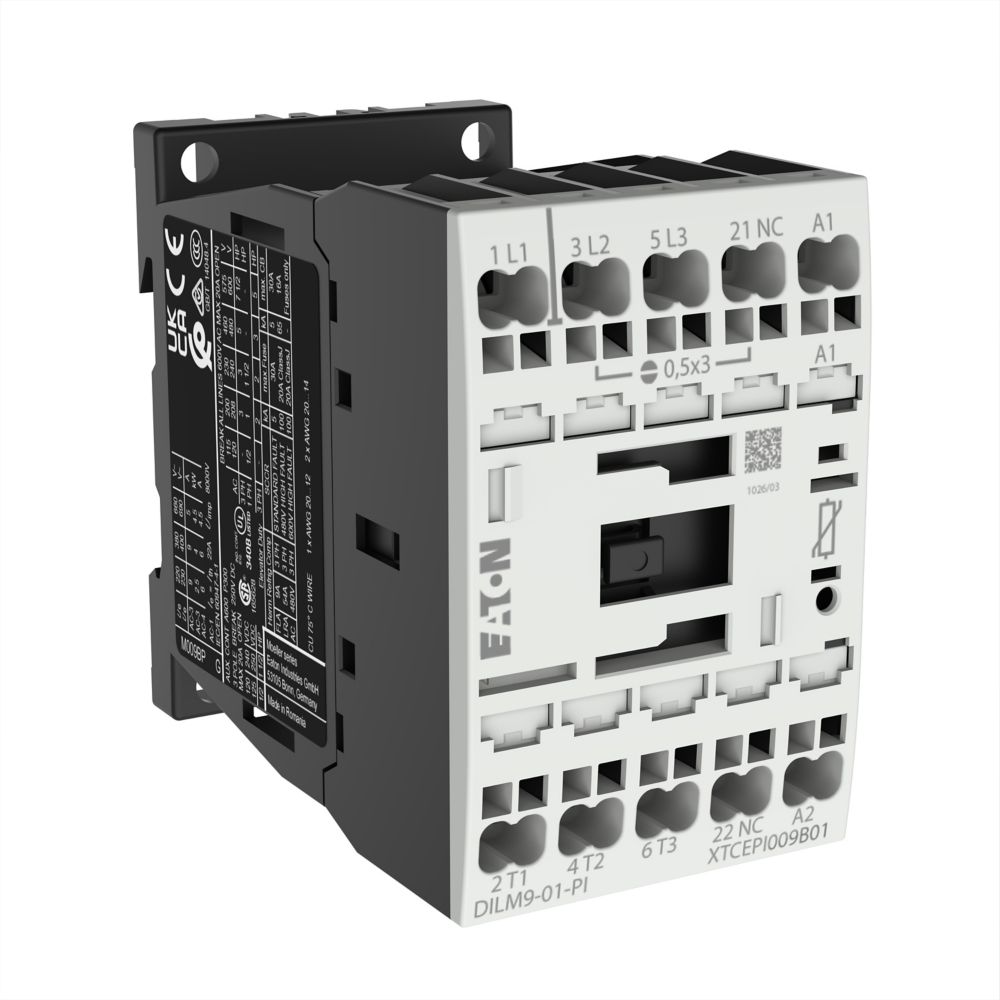

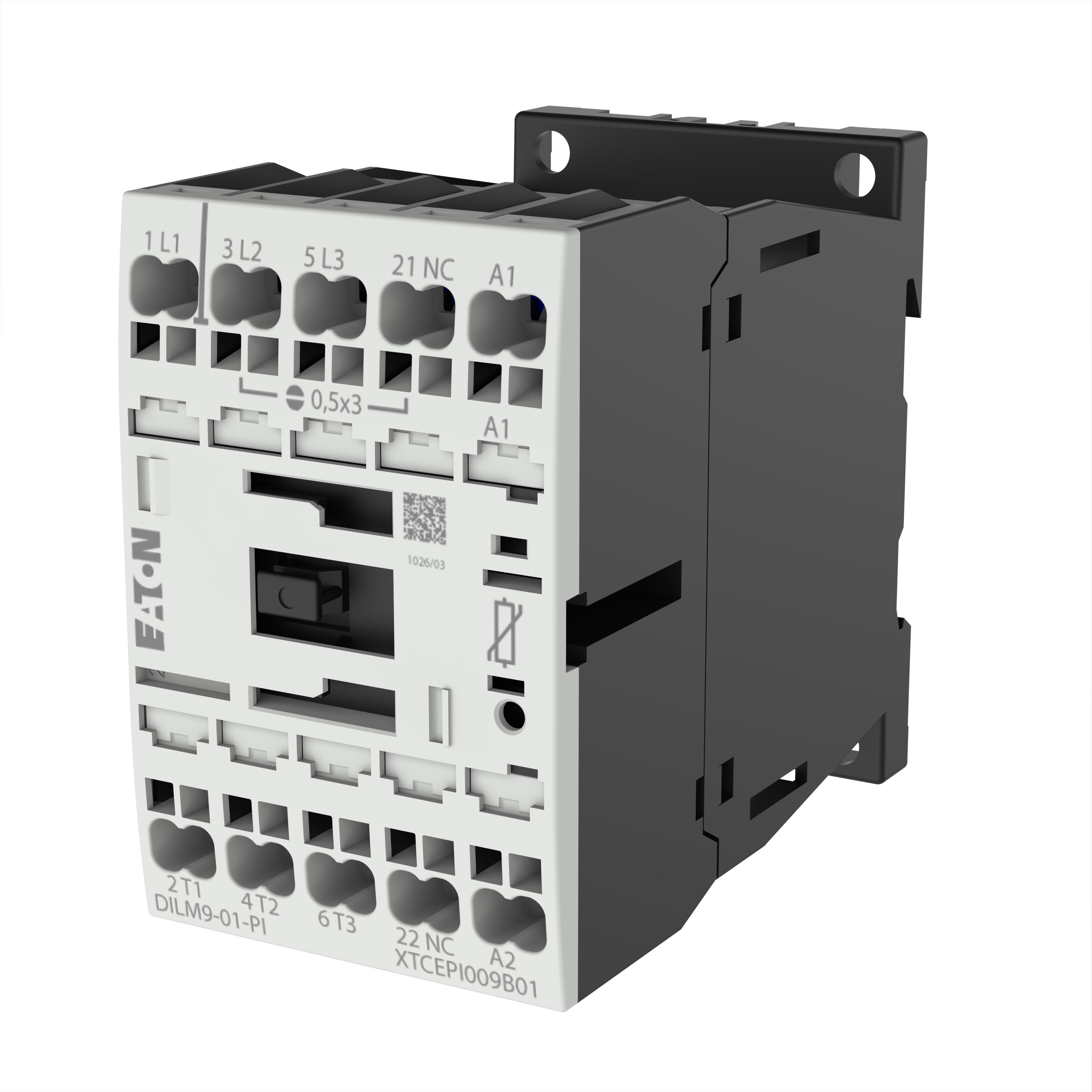

199238 DILM9-01(24VDC)-PI Magneetschakelaar DILM9-01(24VDC), 4kW, 0m, 1v, Push-in
Magneetschakelaar, toepassing: Magneetschakelaars voor motoren, Magneetschakelaars tot 170 A, 3-polig, Gebruikscategorie: AC-1: Niet-inductieve of licht inductieve belastingen, weerstand ovens, NAC-3: Normale AC-inductiemotoren: starten, uitschakelen tijdens bedrijf, AC-4: Normale AC-inductiemotoren: starten, tegenstroomremmen, omkeren, tippen, aansluittechniek: Push-in-klemmen, Opmerkingen: Ook geschikt voor motoren met efficiëntieklasse IE3., IE3-ready apparaten zijn te herkennen aan het logo op hun verpakking., Aantal polen: 3-polig, Nominale bedrijfsstroom AC-3 380 V 400 V: Ie= 9 A, Nominale bedrijfsstroom AC-1 Conventionele thermische stroom in vrije lucht, 3-polig
Specificaties
Algemeen
Ons artikelnummer | 4100437 |
Artikelnummer fabrikant | 199238 |
EAN-code | 4015081973224 |
Artikelklasse (ETIM) | Magneetschakelaar |
Merk | Eaton |
Serie | |
Type nummer | DILM9-01(24VDC)-PI |
Omschrijving | Magneetschakelaar DILM9-01(24VDC), 4kW, 0m, 1v, Push-in |
Land van Oorsprong | RO |
Technisch
Nom. vermogen bij AC-3, 400 V | 4 kW |
Type stuurspanning | DC |
Nom. stuurspanning bij AC 50 Hz | 0 - 0 V |
Nom. stuurspanning bij AC 60 Hz | 0 - 0 V |
Nom. stuurspanning bij DC | 24 - 24 V |
Aantal hoofdcontacten als verbreekcontact | 0 |
Aantal hoofdcontacten als maakcontact | 3 |
Aantal hulpcontacten als maakcontact | 0 |
Aantal hulpcontacten als verbreekcontact | 1 |
Nom. bedrijfsstroom Ie bij AC-1, 400 V | 22 A |
Nom. bedrijfsstroom Ie bij AC-3, 400 V | 9 A |
Nom. bedrijfsstroom Ie bij AC-4, 400 V | 6 A |
Nom. vermogen bij AC-4, 400 V | 2.5 kW |
Modulaire uitvoering (voor railmontage) | Nee |
Breedte | 45 mm |
Aansluitwijze hoofdstroomcircuit | Veerklemaansluiting |
Hoogte | 68 mm |
Diepte | 75 mm |
Nom. vermogen NEMA | 0 kW |
Bedrijfsspanning bij AC 50 Hz | 24 - 690 V |
Bedrijfsspanning bij AC 60 Hz | 24 - 690 V |
Logistiek
Beschikbare voorraad | 174 st |
Levertermijn | Verwacht over 1 werkdag |
Aantal eenheden in artikel | 1 st |
Minimale bestelafname | 1 st |
Standaard voorraadartikel | Ja |
Bruto gewicht | 0,298 kg |
Afmeting verpakking | 0,079 x 0,046 x 0,07 m |
Prijs
Bruto prijs (€) | 59,48 per 1 st |
