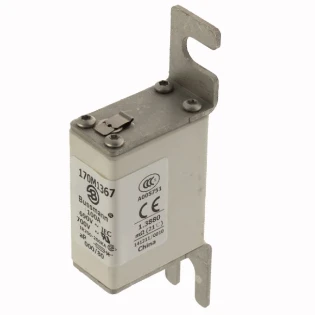

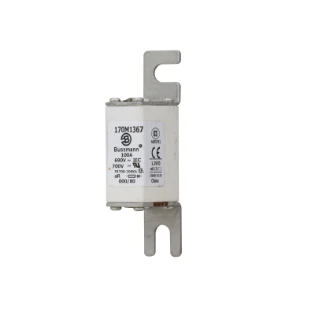

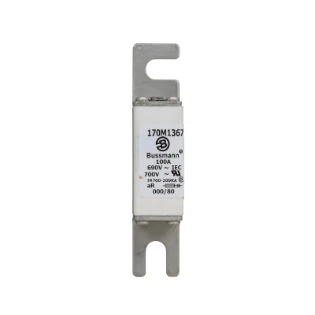

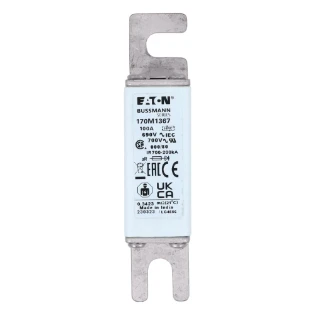

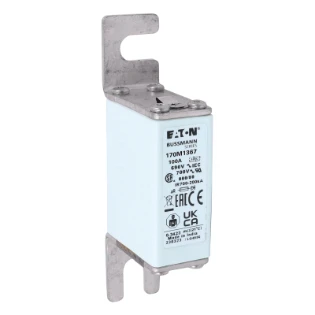

Eaton - HRC zekering - FUSE 100A 690V 000/80 AR UC
Brutoprijs
44,98
Eaton - HRC zekering - FUSE 100A 690V 000/80 AR UC
Ons artikelnummer
2537644
Artikelnummer fabrikant
170M1367
Type nummer
FUSE 100A 690V 000/80 AR UC
EAN-code
5027590440844
Zekeringmaat volgens IEC 60269
000
Type stroom
AC
Nom. (meet)spanning AC
690 V
Nom. (meet)stroom
100 A
Gebruikscategorie volgens IEC 60269
aR
44,98
Brutoprijs 44,98
Artikel bevat 1 st
Verwacht over 144 werkdagen
Minimum bestelaantal: 10 st
Aanbevelingen
Gerelateerde producten
Productomschrijving
170M1367 FUSE 100A 690V 000/80 AR UC Zekering, hoge snelheid, 100 A, AC 690 V, 200 kA, DIN 000, 21 x 40 x 1
High speed square-body zekering, spanningsclassificatie: 690 V (IEC), 700 V (UL), stroomwaarde: 100 A, zekering maat: 000, zekeringmelder Bovenkenmelder, zekering vorm: Square-body, aansluitvlag voor boutverbinding met slobgat, DIN 43653, /80 visuele indicator, gebruikscategorie: aR (beveiliging van semiconductors)
Specificaties
Algemeen
| Ons artikelnummer | 2537644 |
| Artikelnummer fabrikant | 170M1367 |
| EAN-code | 5027590440844 |
| Artikelklasse (ETIM) | HRC zekering |
| Merk | Eaton |
| Serie | Bussmann High Speed Square Body |
| Type nummer | FUSE 100A 690V 000/80 AR UC |
| Omschrijving | Zekering, hoge snelheid, 100 A, AC 690 V, 200 kA, DIN 000, 21 x 40 x 1 |
| Land van Oorsprong | CN |
Technisch
| Zekeringmaat volgens IEC 60269 | 000 |
| Type stroom | AC |
| Nom. (meet)spanning AC | 690 V |
| Nom. (meet)stroom | 100 A |
| Gebruikscategorie volgens IEC 60269 | aR |
| Afschakelvermogen | 200 kA |
| Kleurcode | Geen |
| Uitvoering kenmelder | Bovenkenmelder |
| Vermogensverlies bij nom. stroom | 24 W |
| Bevestigingsgaten | M8 |
| Hart op hart afstand aansluitingen | 76.7 mm |
| Smeltveiligheid systeem volgens IEC 60269 | Overig |
Logistiek
| Levertermijn | Verwacht over 144 werkdagen |
| Aantal eenheden in artikel | 1 st |
| Minimale bestelafname | 10 st |
| Standaard voorraadartikel | Nee |
| Bruto gewicht | 0,144 KG |
| Afmeting verpakking | 0,107 x 0,302 x 0,048 M |
Prijs
| Bruto prijs (€) | 44,98 per 1 st |
Downloads
Presentatie document/presentatiebestand
Presentatie document/presentatiebestand
Standards & regulation, certificaten etc.
Standards & regulation, certificaten etc.
Presentatie document/presentatiebestand
Verkoopbrochure
Verkoopbrochure
Verklaring DOC CE (Declaration of conformity CE)
https://dynamicmedia.eaton.com/is/image/eaton/170M1367_PKG?hei=1000&wid=1000&printRes=300&bfc=off
3D / BIM object
https://dynamicmedia.eaton.com/is/image/eaton/170M1367_PKGO?hei=1000&wid=1000&printRes=300&bfc=off
Verkoopbrochure
Verkoopbrochure
https://dynamicmedia.eaton.com/is/image/eaton/170M1367_PKG?$Native-File$&printRes=300&bfc=off
https://dynamicmedia.eaton.com/is/image/eaton/170M1367_PKGO?$Native-File$&printRes=300&bfc=off
Standards & regulation, certificaten etc.
Standards & regulation, certificaten etc.
Verkoopbrochure
Verkoopbrochure
Verkoopbrochure

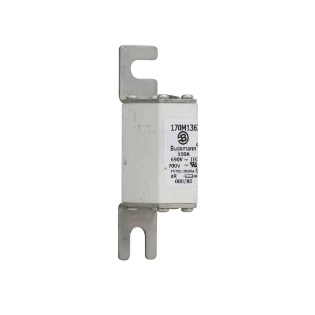

Productfoto van de rechterkant
