Eaton - Frequentieregelaar =< 1 kV - DC1-32024FB-A66OE1
Brutoprijs
1.371,74
Eaton - Frequentieregelaar =< 1 kV - DC1-32024FB-A66OE1
Ons artikelnummer
3334750
Artikelnummer fabrikant
199423
Type nummer
DC1-32024FB-A66OE1
EAN-code
4015081978120
Netspanning
200 - 240 V
Max. afgegeven vermogen bij lineaire belasting bij meetuitgangsspanning
5.5 kW
Aantal fasen ingang
3
Aantal fasen uitgang
3
Netfrequentie
50/60 Hz
1.371,74
Brutoprijs 1.371,74
Artikel bevat 1 st
Verwacht over 27 werkdagen
Aanbevelingen
Gerelateerde producten
Productomschrijving
199423 DC1-32024FB-A66OE1 Frequentieregelaar U/f, SLV; DC1 E2 3~/3~230V 24A 5,5kW IP66
Frequentieregelaar, 230 V AC, 3-fase, 24 A, 5,5 kW, IP66/NEMA 4X, radio-ontstoringsfilter, remchopper, 7-segment-display, extra printplaatbeveiliging, UV-bestendig, FS3
Specificaties
Algemeen
| Ons artikelnummer | 3334750 |
| Artikelnummer fabrikant | 199423 |
| EAN-code | 4015081978120 |
| Artikelklasse (ETIM) | Frequentieregelaar =< 1 kV |
| Merk | Eaton |
| Serie | DC1 |
| Type nummer | DC1-32024FB-A66OE1 |
| Omschrijving | Frequentieregelaar U/f, SLV; DC1 E2 3~/3~230V 24A 5,5kW IP66 |
| Land van Oorsprong | GB |
Technisch
| Netspanning | 200 - 240 V |
| Max. afgegeven vermogen bij lineaire belasting bij meetuitgangsspanning | 5.5 kW |
| Aantal fasen ingang | 3 |
| Aantal fasen uitgang | 3 |
| Netfrequentie | 50/60 Hz |
| Max. uitgangsfrequentie | 500 Hz |
| Max. afgegeven vermogen bij kwadratische belasting bij meetuitgangsspanning | 5.5 kW |
| Breedte | 210.5 mm |
| Met bedieningselement | Ja |
| Inzet in industriële omgeving toegestaan | Ja |
| Inzet in woon- en kantorenomgeving toegestaan | Ja |
| Ondersteunt protocol TCP/IP | Nee |
| Ondersteunt protocol voor PROFIBUS | Nee |
| Ondersteunt protocol voor CAN | Ja |
| Ondersteunt protocol voor INTERBUS | Nee |
| Ondersteunt protocol voor ASI | Nee |
| Ondersteunt protocol voor KNX | Nee |
| Ondersteunt protocol voor MODBUS | Ja |
| Ondersteunt protocol voor Data-Highway | Nee |
| Ondersteunt protocol voor DeviceNet | Nee |
| Ondersteunt protocol voor SUCONET | Nee |
| Ondersteunt protocol voor LON | Nee |
| Ondersteunt protocol voor PROFINET IO | Nee |
| Ondersteunt protocol voor PROFINET CBA | Nee |
| Ondersteunt Protocol voor SERCOS | Nee |
| Ondersteunt protocol voor Foundation Fieldbus | Nee |
| Ondersteunt protocol voor EtherNet/IP | Ja |
| Ondersteunt protocol voor AS-Interface Safety at Work | Nee |
| Ondersteunt protocol voor DeviceNet Safety | Nee |
| Ondersteunt protocol voor INTERBUS-Safety | Nee |
| Ondersteunt protocol voor PROFIsafe | Nee |
| Ondersteunt protocol voor SafetyBUS p | Nee |
| Ondersteunt protocol voor overige bussystemen | Ja |
| Aantal HW-interfaces industrieel ethernet | 0 |
| Aantal interfaces PROFINET | 0 |
| Aantal HW-interfaces serieel RS-232 | 0 |
| Aantal HW-interfaces serieel RS-422 | 0 |
| Aantal HW-interfaces serieel RS-485 | 1 |
| Aantal HW-interfaces serieel TTY | 0 |
| Aantal HW-interfaces USB | 0 |
| Aantal HW-interfaces parallel | 0 |
| Aantal HW-interfaces overige | 0 |
| Met optische interface | Nee |
| Met PC-aansluiting | Ja |
| Geïntegreerde remchopper | Ja |
| 4-kwadrantenbedrijf mogelijk | Ja |
| Type omvormer | U-omvormer |
| Beschermingsgraad (IP) | IP66 |
| Hoogte | 310 mm |
| Diepte | 238 mm |
| Relatieve symmetrische netfrequentietolerantie | 10 % |
| Relatieve symmetrische netspanningstolerantie | 10 % |
| Max. uitgangsspanning | 250 V |
| Nom. uitgangsstroom I2N | 24 A |
| Aantal analoge uitgangen | 1 |
| Aantal analoge ingangen | 2 |
| Aantal digitale uitgangen | 1 |
| Aantal digitale ingangen | 4 |
| Ondersteunt protocol voor BACnet | Nee |
| Beschermingsgraad (NEMA) | 4X |
| Opgenomen vermogen | 223 W |
Logistiek
| Levertermijn | Verwacht over 27 werkdagen |
| Aantal eenheden in artikel | 1 st |
| Minimale bestelafname | 1 st |
| Standaard voorraadartikel | Nee |
| Bruto gewicht | 8,196 kg |
| Afmeting verpakking | 0,305 x 0,305 x 0,44 M |
Prijs
| Bruto prijs (€) | 1.371,74 per 1 st |
Downloads
Handleiding
Handleiding
Handleiding
Presentatie document/presentatiebestand
Presentatie document/presentatiebestand
Standards & regulation, certificaten etc.
Standards & regulation, certificaten etc.
Standards & regulation, certificaten etc.
Standards & regulation, certificaten etc.
Verkoopbrochure
Verkoopbrochure
Verkoopbrochure
Handleiding
Handleiding
Handleiding
3D / BIM object
Handleiding
Montage handleiding
Handleiding
3D / BIM object

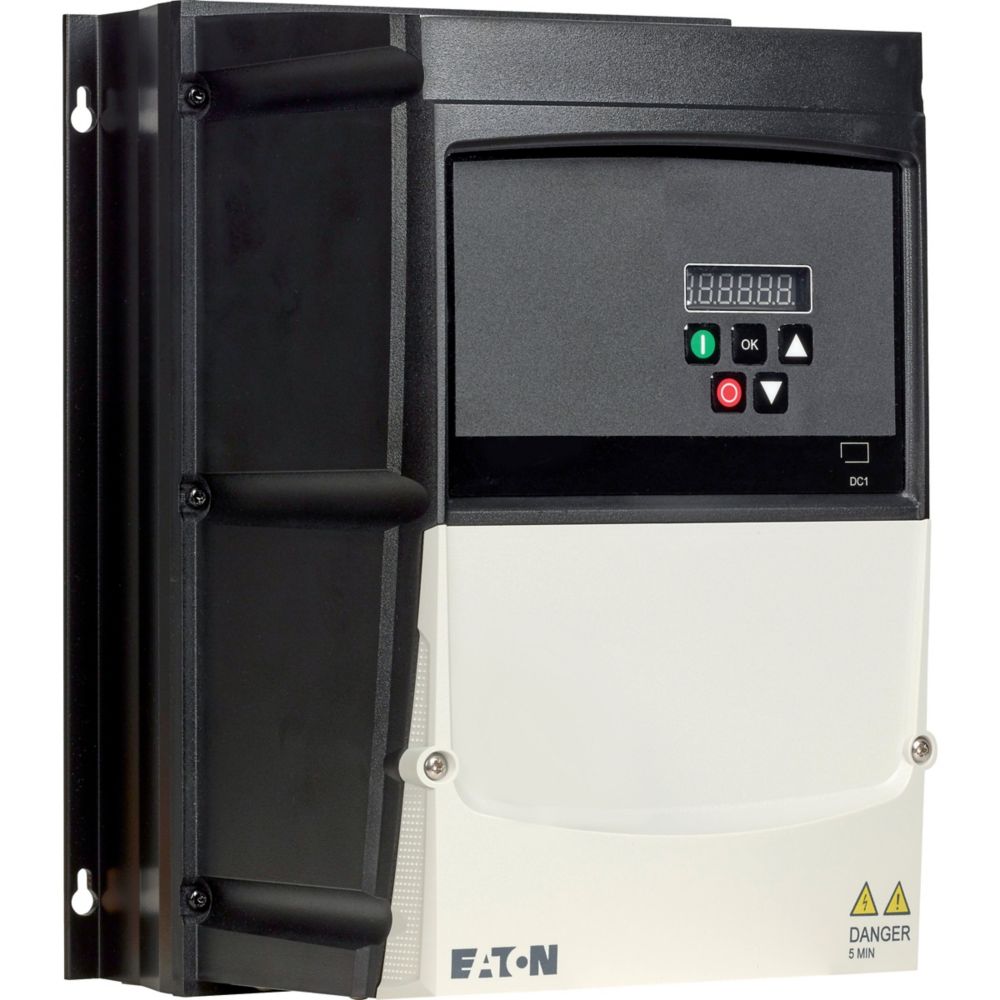

Productfoto van de linkerkant
Handleiding

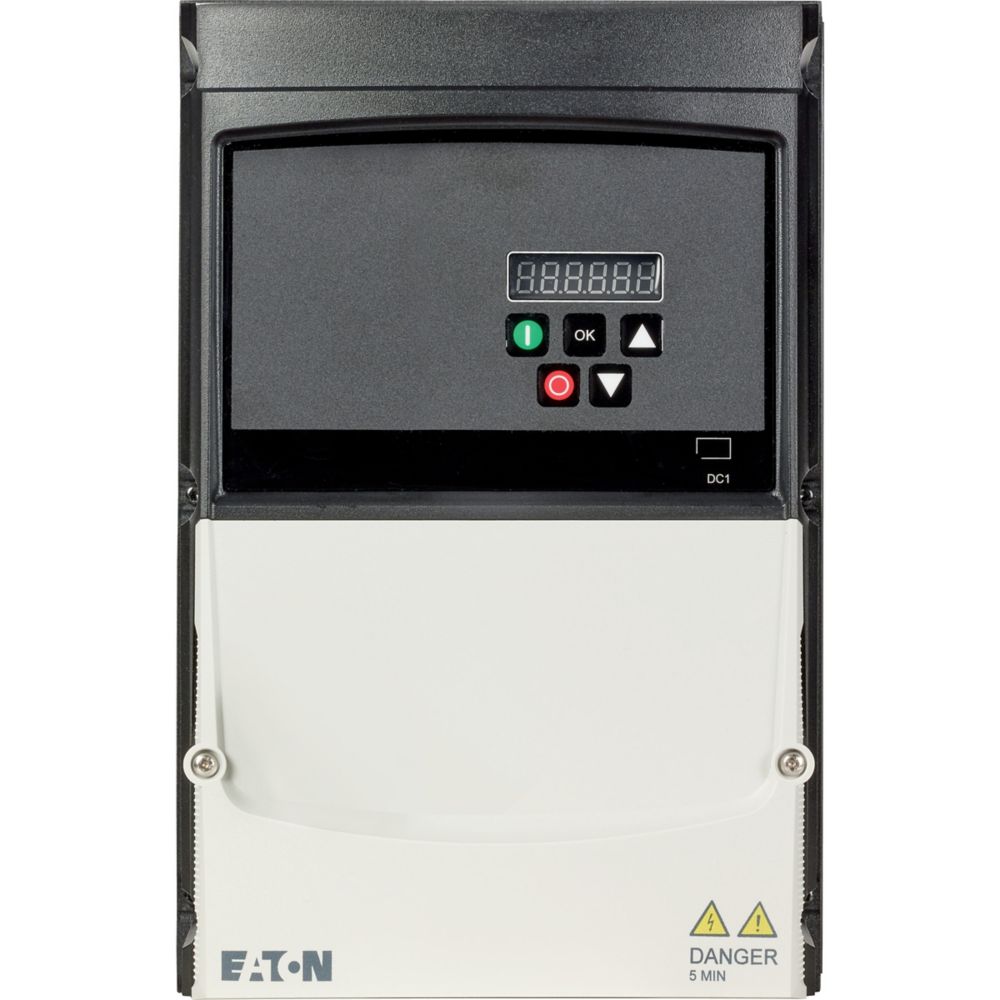

Productfoto vooraanzicht
Handleiding
Vergelijkbare afbeelding
Productvideo
Vergelijkbare afbeelding met hoge resolutie
Handleiding
Handleiding
Handleiding
Handleiding

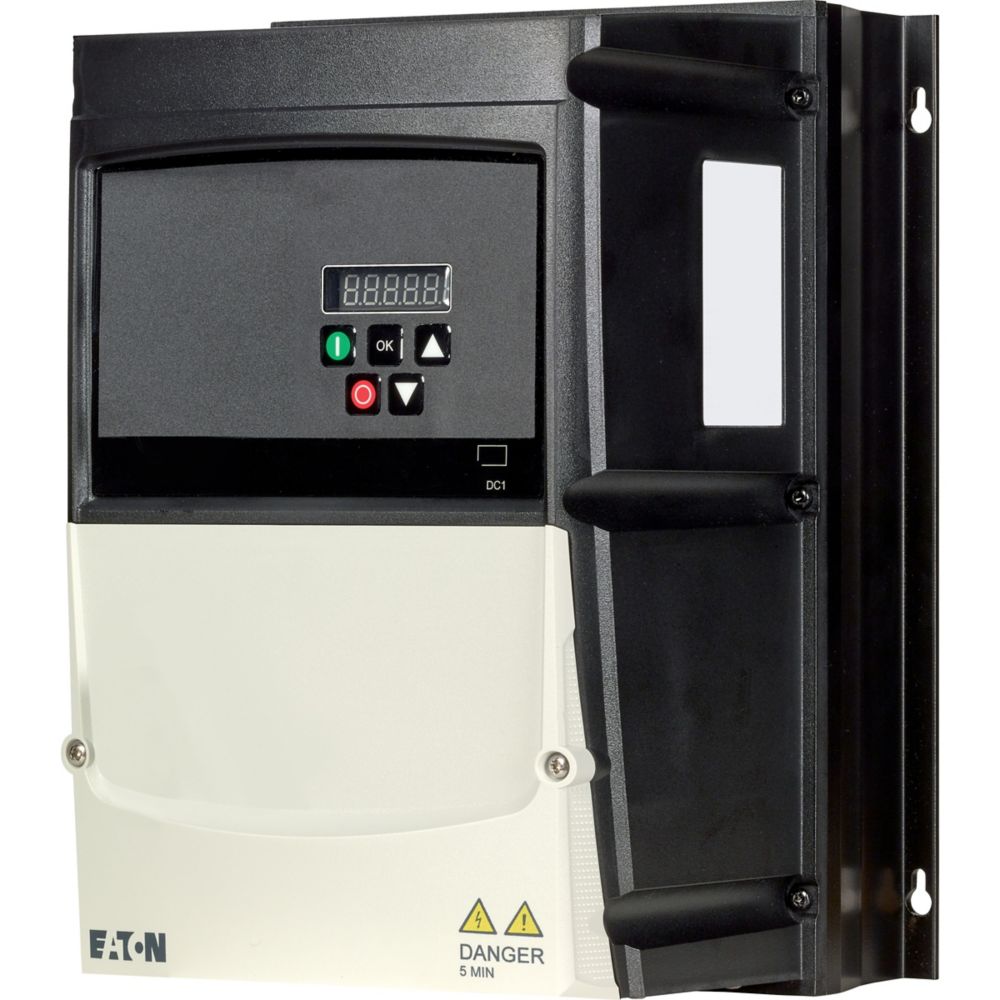

Productfoto van de rechterkant
