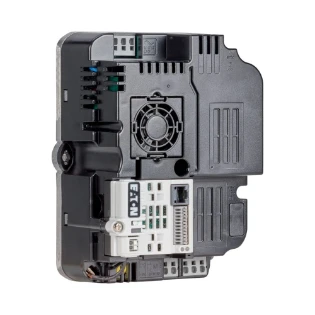

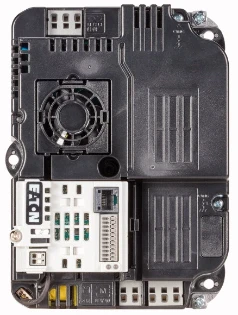

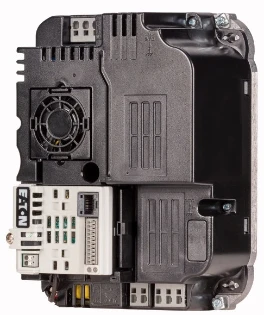

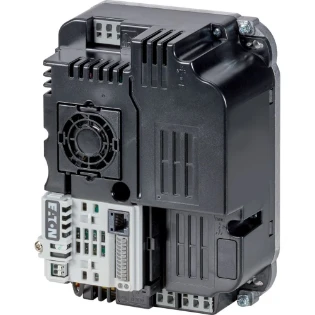

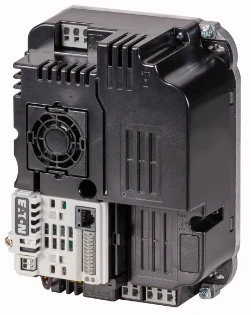

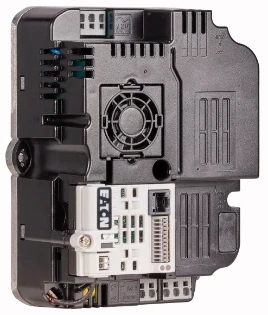

Eaton - Frequentieregelaar =< 1 kV - DB1-345D8FB-N2CC
Brutoprijs
686,03
Eaton - Frequentieregelaar =< 1 kV - DB1-345D8FB-N2CC
Ons artikelnummer
3034548
Artikelnummer fabrikant
197565
Type nummer
DB1-345D8FB-N2CC
EAN-code
4015081943340
Netspanning
380 - 480 V
Max. afgegeven vermogen bij lineaire belasting bij meetuitgangsspanning
2.2 kW
Aantal fasen ingang
3
Aantal fasen uitgang
3
Netfrequentie
50/60 Hz
686,03
Brutoprijs 686,03
Artikel bevat 1 st
Verwacht over 27 werkdagen
Minimum bestelaantal: 10 st
Aanbevelingen
Gerelateerde producten
Productomschrijving
197565 DB1-345D8FB-N2CC Frequentieregelaar U/f, SLV; DB1 3~/3~400V 5,8A 2,2kW EMC IP20, FS2
Eaton DB1 DB1-345D8FB-N2CC Frequentieregelaar U/f, SLV; DB1 3~/3~400V 5,8A 2,2kW EMC IP20, FS2
Specificaties
Algemeen
| Ons artikelnummer | 3034548 |
| Artikelnummer fabrikant | 197565 |
| EAN-code | 4015081943340 |
| Artikelklasse (ETIM) | Frequentieregelaar =< 1 kV |
| Merk | Eaton |
| Serie | DB1 |
| Type nummer | DB1-345D8FB-N2CC |
| Omschrijving | Frequentieregelaar U/f, SLV; DB1 3~/3~400V 5,8A 2,2kW EMC IP20, FS2 |
| Land van Oorsprong | GB |
Technisch
| Netspanning | 380 - 480 V |
| Max. afgegeven vermogen bij lineaire belasting bij meetuitgangsspanning | 2.2 kW |
| Aantal fasen ingang | 3 |
| Aantal fasen uitgang | 3 |
| Netfrequentie | 50/60 Hz |
| Max. uitgangsfrequentie | 500 Hz |
| Max. afgegeven vermogen bij kwadratische belasting bij meetuitgangsspanning | 2.2 kW |
| Breedte | 140 mm |
| Met bedieningselement | Nee |
| Inzet in industriële omgeving toegestaan | Ja |
| Inzet in woon- en kantorenomgeving toegestaan | Ja |
| Ondersteunt protocol TCP/IP | Nee |
| Ondersteunt protocol voor PROFIBUS | Nee |
| Ondersteunt protocol voor CAN | Ja |
| Ondersteunt protocol voor INTERBUS | Nee |
| Ondersteunt protocol voor ASI | Nee |
| Ondersteunt protocol voor KNX | Nee |
| Ondersteunt protocol voor MODBUS | Ja |
| Ondersteunt protocol voor Data-Highway | Nee |
| Ondersteunt protocol voor DeviceNet | Nee |
| Ondersteunt protocol voor SUCONET | Nee |
| Ondersteunt protocol voor LON | Nee |
| Ondersteunt protocol voor PROFINET IO | Nee |
| Ondersteunt protocol voor PROFINET CBA | Nee |
| Ondersteunt Protocol voor SERCOS | Nee |
| Ondersteunt protocol voor Foundation Fieldbus | Nee |
| Ondersteunt protocol voor EtherNet/IP | Nee |
| Ondersteunt protocol voor AS-Interface Safety at Work | Nee |
| Ondersteunt protocol voor DeviceNet Safety | Nee |
| Ondersteunt protocol voor INTERBUS-Safety | Nee |
| Ondersteunt protocol voor PROFIsafe | Nee |
| Ondersteunt protocol voor SafetyBUS p | Nee |
| Ondersteunt protocol voor overige bussystemen | Ja |
| Aantal HW-interfaces industrieel ethernet | 0 |
| Aantal interfaces PROFINET | 0 |
| Aantal HW-interfaces serieel RS-232 | 0 |
| Aantal HW-interfaces serieel RS-422 | 0 |
| Aantal HW-interfaces serieel RS-485 | 1 |
| Aantal HW-interfaces serieel TTY | 0 |
| Aantal HW-interfaces USB | 0 |
| Aantal HW-interfaces parallel | 0 |
| Aantal HW-interfaces overige | 0 |
| Met optische interface | Nee |
| Met PC-aansluiting | Ja |
| Geïntegreerde remchopper | Ja |
| 4-kwadrantenbedrijf mogelijk | Nee |
| Type omvormer | U-omvormer |
| Beschermingsgraad (IP) | IP20 |
| Hoogte | 193 mm |
| Diepte | 89 mm |
| Relatieve symmetrische netfrequentietolerantie | 10 % |
| Relatieve symmetrische netspanningstolerantie | 10 % |
| Max. uitgangsspanning | 500 V |
| Nom. uitgangsstroom I2N | 5.8 A |
| Aantal analoge uitgangen | 1 |
| Aantal analoge ingangen | 2 |
| Aantal digitale uitgangen | 1 |
| Aantal digitale ingangen | 4 |
| Ondersteunt protocol voor BACnet | Nee |
| Beschermingsgraad (NEMA) | Overig |
| Opgenomen vermogen | 143 W |
Logistiek
| Levertermijn | Verwacht over 27 werkdagen |
| Aantal eenheden in artikel | 1 st |
| Minimale bestelafname | 10 st |
| Standaard voorraadartikel | Nee |
| Bruto gewicht | 1,15 kg |
| Afmeting verpakking | 0,091 x 0,142 x 0,195 M |
Prijs
| Bruto prijs (€) | 686,03 per 1 st |
Downloads
Afbeelding met hoge resolutie
Handleiding
Handleiding
Handleiding
Presentatie document/presentatiebestand
Presentatie document/presentatiebestand
Standards & regulation, certificaten etc.
Standards & regulation, certificaten etc.
Verkoopbrochure
Verkoopbrochure
Verkoopbrochure

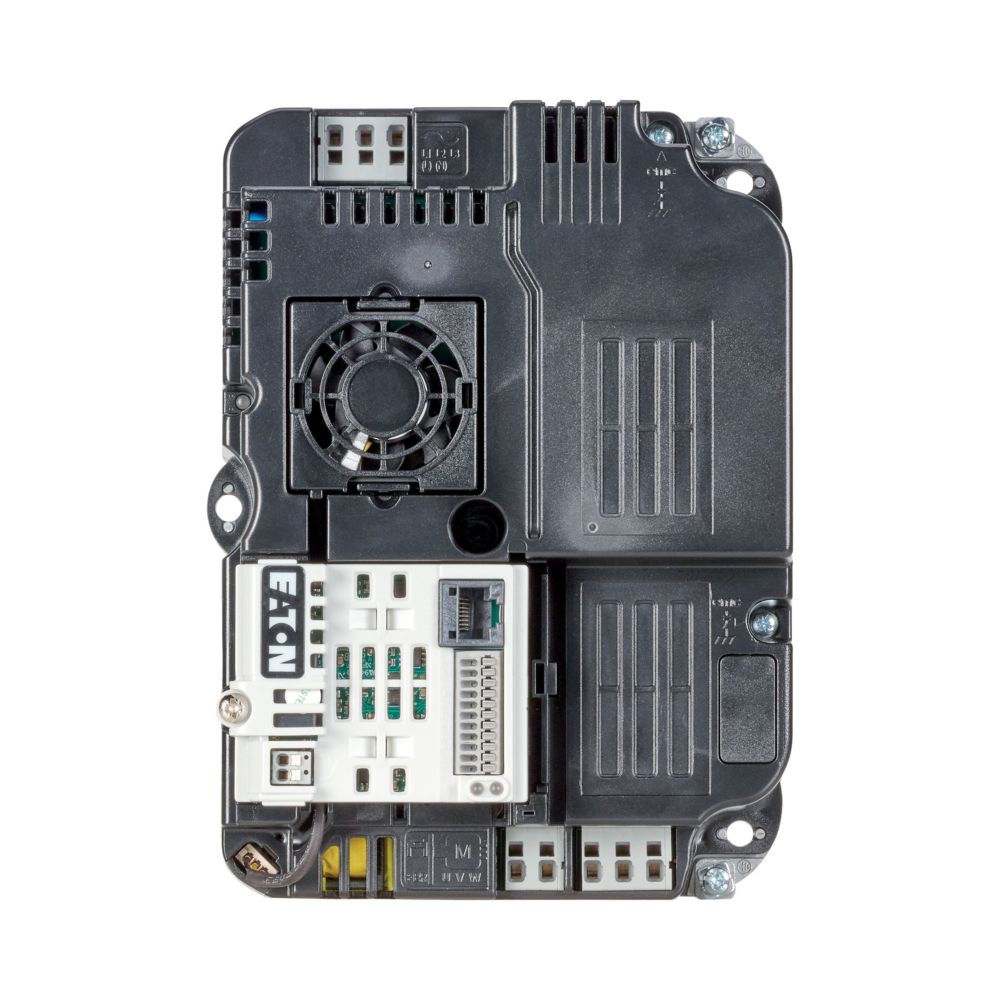

Productfoto vooraanzicht
