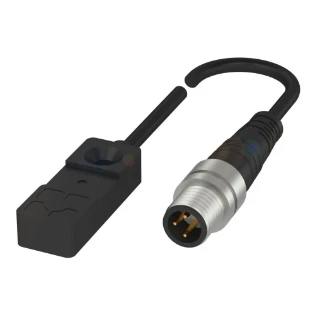

Balluff - Inductieve afstandssensor - BAW R03KC-UAE40B-BP00,3-GS49

BAW0031 INDUCTIVE DISTANCE SENSOR BAW0031

Our BAW inductive distance sensors measure various positions, distances, and can differentiate between material variants. They work without making contact, and so remain distinguished by a long service life free from wear.The included teach function has an adjustable linearity range. This enables quick commissioning during initial installation and ensures short downtimes when replacing sensors.The multiplicity of available configurations allows the inductive distance sensors to be easily integrated into any application. Important applications include monitoring movements in joining, pressing, or clamping equipment used for mechanical engineering or detecting axle imbalances and expansions. The inductive distance sensors supply an absolute analog voltage, current, or IO-Link signal. Dimension = 30 x 10 x 6 mm, Style Housing = block style, Installation = for flush mounting, Range = 1...4 mm, Analog output = Analog, voltage 0...
