ABB - Tastsensor bussysteem - 6127/02-884
Productomschrijving
6127/02-884 KNX SENSOR MULTIFU KNX SENSOR MULTIFUNCT 4/8V F-M

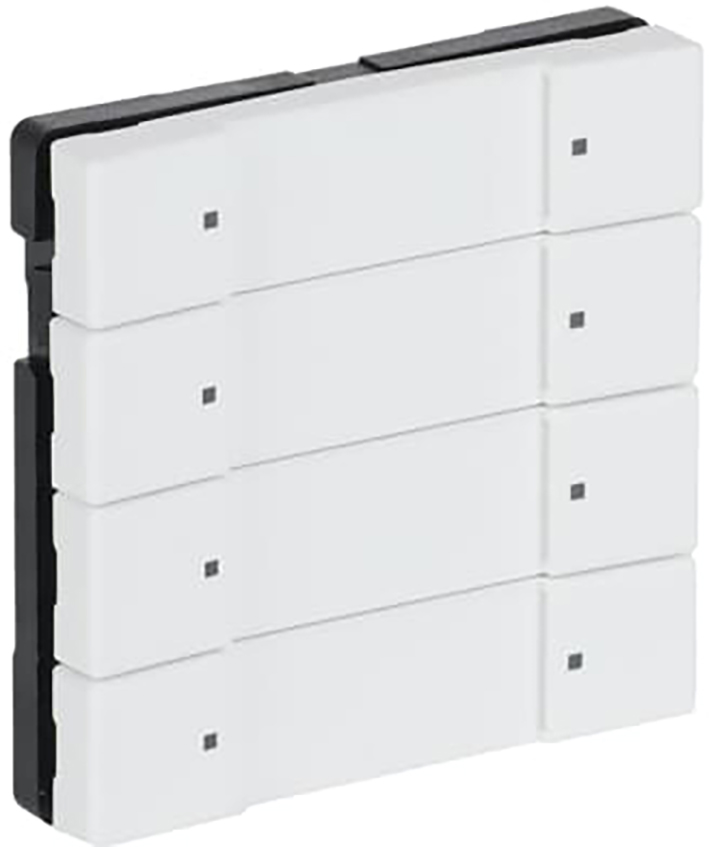

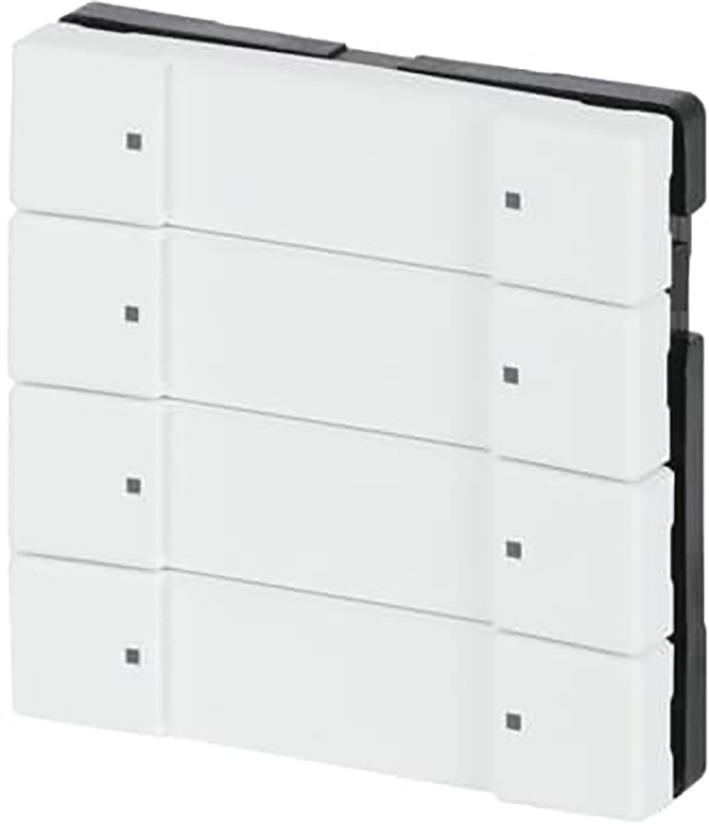

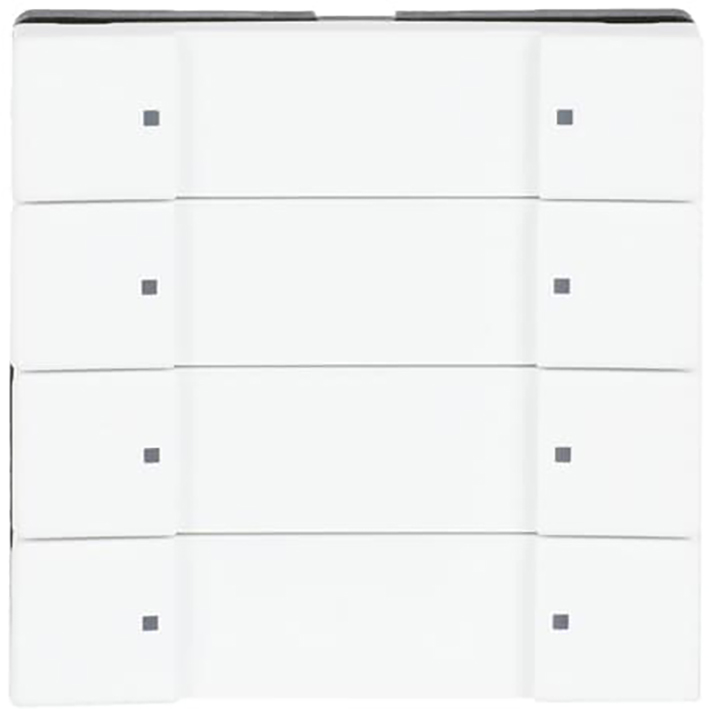

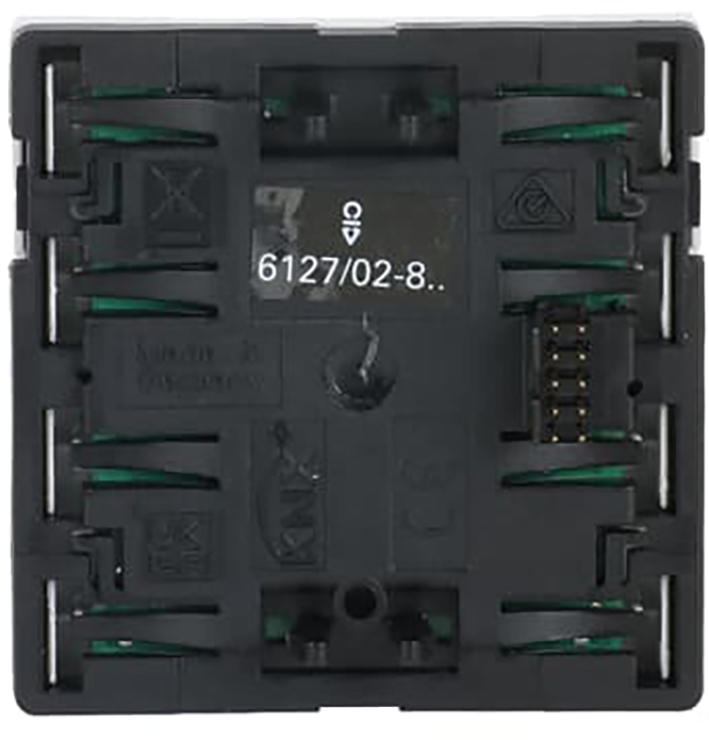

KNX sensor, bedieningselement, 4/8-voudig, multifunctioneel/kleurconcept, f-matwit.
For ABB i-bus® KNX 6120/12-101, 6120/13. With labelling field. Support of KNX functions through innovative colour concept (yellow=lighting, blue=blind, orange=RTC, magenta=scene and white=neutral/no function assigned) or standard illumination red/green. Push switch function: switching / dimming / blind / sending values / scenes etc. Transparent labelling sheet with standard symbols included in delivery. Incl. 10 logic channels (light scene actuator, sequence actuator, logic gates, etc.).
Specificaties
Algemeen
Ons artikelnummer | 2104420 |
Artikelnummer fabrikant | 2CKA006117A0219 |
EAN-code | 4011395140222 |
Artikelklasse (ETIM) | Tastsensor bussysteem |
Merk | ABB |
Serie | ABB i-bus KNX, Future linear, Power |
Type nummer | 6127/02-884 |
Omschrijving | KNX sensor multifunct 4/8v f-matwit |
Land van Oorsprong |
Technisch
Bussysteem KNX | Ja |
Bussysteem KNX-RF (radiofrequent) | Nee |
Bussysteem radiofrequent | Nee |
Bussysteem LON | Nee |
Bussysteem Powerline | Ja |
Andere bussystemen | Geen |
Montagewijze | Inbouw (stucwerk) |
Met diefstal-/demontagebescherming | Ja |
Busaansluiting incl. | Nee |
Aantal bedieningspunten | 8 |
Aantal toetsen | 4 |
Met LED indicatie | Ja |
Met indicatieveld | Ja |
Met display | Nee |
Materiaal | Kunststof |
Materiaalkwaliteit | Thermoplast |
Oppervlaktebescherming | Gelakt |
Uitvoering oppervlakte | Mat |
Kleur | Wit |
RAL-Nummer (vergelijkbaar) | 9016 |
Transparant | Nee |
Met ruimtethermostaat | Nee |
Met IR-sensor | Nee |
Beschermingsgraad (IP) | IP20 |
Radiofrequent bidirectioneel | Nee |
Min. diepte van de inbouwdoos | 33 mm |
Logistiek
Levertermijn | Verwacht over 7 werkdagen |
Aantal eenheden in artikel | 1 st |
Minimale bestelafname | 1 st |
Standaard voorraadartikel | Nee |
Bruto gewicht | 0,036 kg |
Afmeting verpakking | 0,078 x 0,092 x 0,058 m |
Prijs
Bruto prijs (€) | 121,00 per 1 st |
