ABB - Schakelkast leeg - EH3U82S2

EH3/AP-2 VOETPADKAST V.V. UV COATING

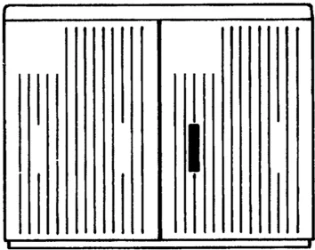

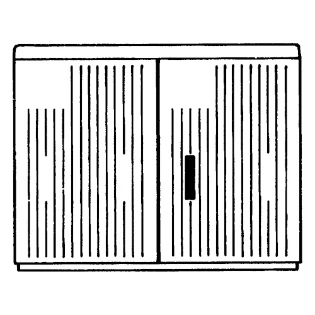

Cable distribution cabinet with profiled surface. They have a three-point lock with a swivelling lever handle for profile half cylinders. The cabinets are made of hot-pressed, glass-fibre reinforced polyester, dyed through in RAL 7035 light grey. They are corrosion and UV resistant and therefore suitable for outdoor use, the additional UV coating provides better weathering protection. The enclosures are suitable for ambient conditions from -35°C to +70°C. The open door can be easily disassembled by removing the hinge pins for optimal access to the cabinet. The door opening angle is greater than 180°. There are pressed-in core holes in the rear panel to accept M8 press-in nuts for mounting busbars, mounting frames or mounting plates. The enclosures are supplied with an open base, base plates are available as accessories. There are fixing points in the side panel for mounting horizontal busbars. The enclosures are designed for mounting on bases according to DIN 43629 with standard dimensions between the mounting points. EHP33UV Cabinet AP size 3 875x1445x320 EH3, profiled, SHG, UV lacqueringIP44, IK10
