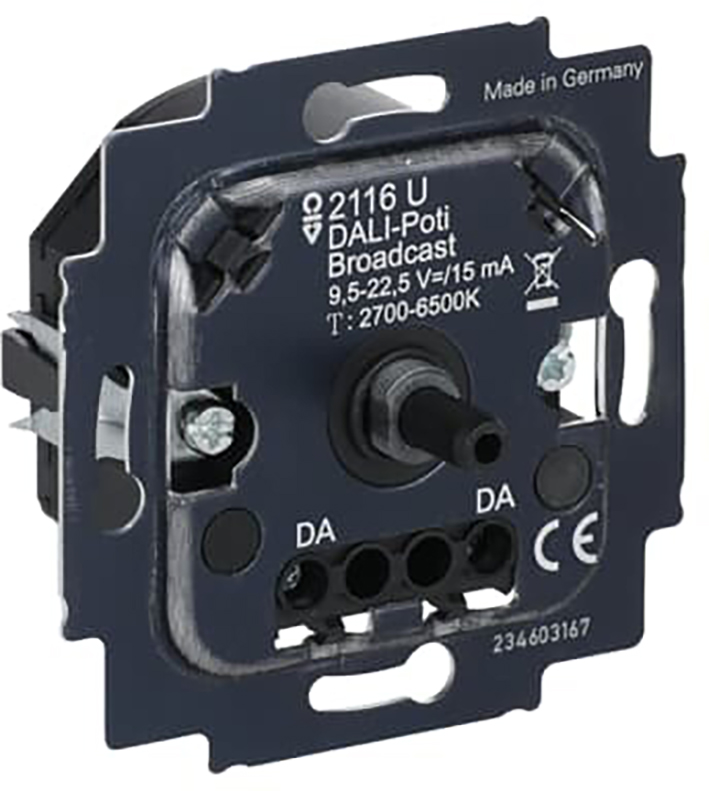

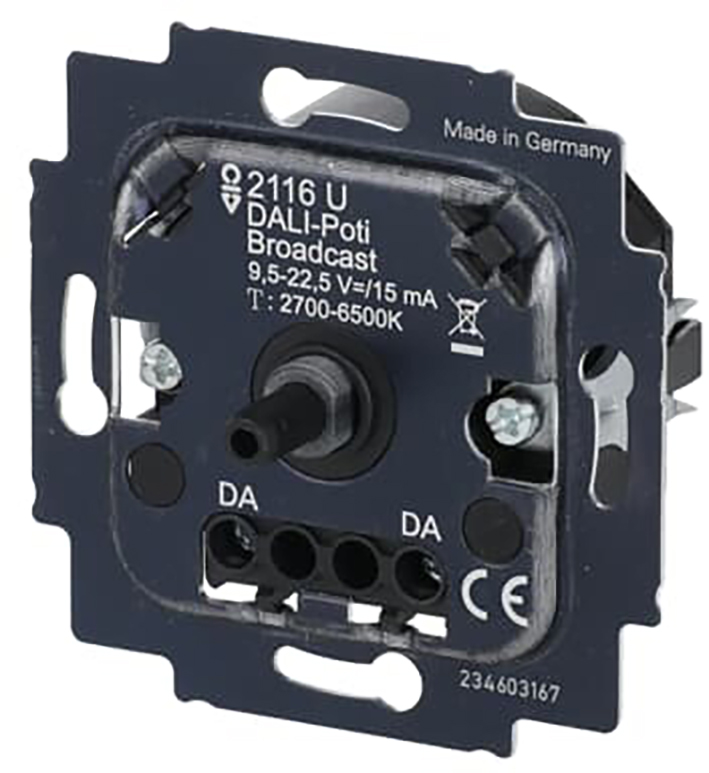

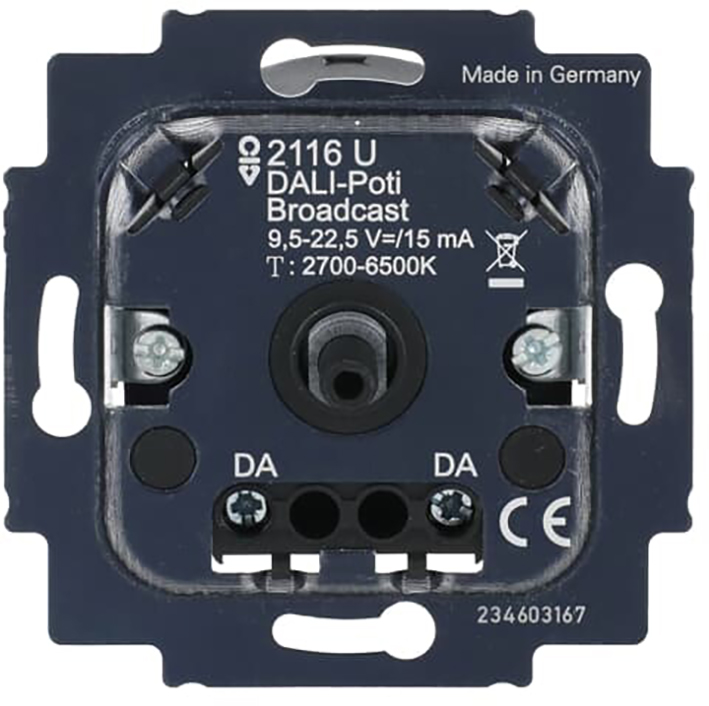

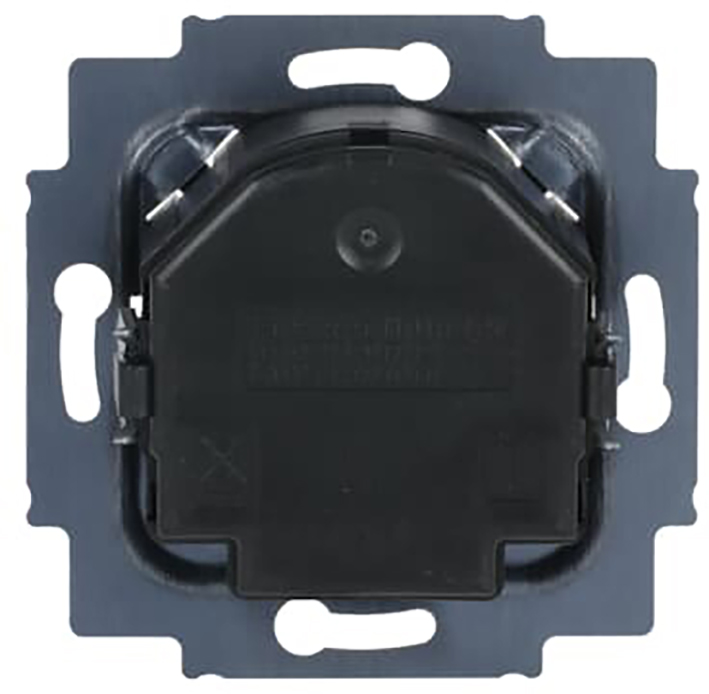

ABB - Potentiometer voor lichtregelsysteem - 2116 U

2116 U 6599-0-3025DALI POT.METER TW BROADCAST INB

Inbouw Busch-draaidimmer, DALI, TW, broadcast-bedrijf

For DALI broadcast service (via central telegram). For switching and dimming up to 64 DALI- devices like electronic ballasts and transformers with DALI-interface. With rotary control and ON/OFF push operation. Fool proved. For changing the colour temperature of >tunable white< lamps, which meet DALI Standard IEC 62386-209 (Device Type 8). Colour temperature can then be set between 2,700 K - 6,500 K. Brightness power-on level and backround brightness level adjustable, buffered. With integrated LED illumination for orientation. Color of orientation light adjustable (18 presets and OFF). Up to 5 potentiometers are connectable in parallel. Max. current consumption: 15 mA. Not suitable for combining with other DALI sensors or central units of other manufacturers. For the generation of the DALI voltage a power supply according to IEC 62386 is required e.g. from Tridonic, Philips, Helvar or BJE article no. 2116/11 U. Max. DALI-cable length: 300 m (1,5 - 2,5 mm²). Without cover plate.

Duurzaam product

Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Potentiometer voor lichtregelsysteem" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.
