ABB - Lastscheider - BW 440 TPSN
Productomschrijving
BW 440 TPSN

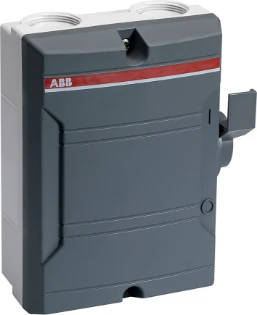

Encl. Switch Disconnector, 4-p. 415V AC23 25A, 11kW. Plastic enclosure. IP65. Grey Side-operated handle. Interlocked cover. The enclosure of the ABB´s side controlled enclosed switches is made of rigid polycarbonate. The enclosure is UV protected, and protected against low pressure water jets (IP65), and hence built for outdoor and indoor use. The enclosure is available in different colors, grey, yellow and white. The cable entries are threaded and have knock out holes for 2 parallell cables, both from top and bottom. Membrane grommets are included (IP54). The handle is padlockable and made for one padlock. The cover is interlocked. The switch is made for 5 wire system, and have a switchable neutral terminal and PE terminal. The terminals are easily accessible for easy installation.
Specificaties
Algemeen
Ons artikelnummer | 2284154 |
Artikelnummer fabrikant | 2CMA142409R1000 |
EAN-code | 7392696424097 |
Artikelklasse (ETIM) | Lastscheider |
Merk | ABB |
Serie | Enclosed Switches |
Type nummer | BW 440 TPSN |
Omschrijving | Werkschakelaar 4P 40A (AC-22A 500V) donker grijze behuizing kabelinvoe |
Land van Oorsprong |
Technisch
Aantal polen | 4 |
Nom. continustroom Iu | 40 A |
Uitvoering als hoofdschakelaar | Nee |
Uitvoering als werkschakelaar | Ja |
Uitvoering als veiligheidsschakelaar | Nee |
Uitvoering als noodstopinrichting | Nee |
Breedte | 138 mm |
Apparaatbouwvorm | Compleet apparaat in behuizing ingebouwd |
Max. nom. bedrijfsspanning Ue bij AC | 690 V |
Nom. vermogen, AC-23, 400 V | 11 kW |
Aantal hulpcontacten als verbreekcontact | 0 |
Aantal hulpcontacten als maakcontact | 0 |
Aantal hulpcontacten als wisselcontact | 0 |
Motoraandrijving optioneel | Nee |
Motoraandrijving geïntegreerd | Nee |
Uitschakelspoel optioneel | Nee |
Geschikt voor bodemmontage | Ja |
Geschikt voor frontmontage 4-gats | Ja |
Geschikt voor frontmontage centraal | Nee |
Geschikt voor verdelerinbouw | Nee |
Geschikt voor tussenbouw | Nee |
Uitvoering van het bedieningselement | Tuimelaar |
Vergrendelbaar | Ja |
Aansluitwijze hoofdstroomcircuit | Schroefaansluiting |
Beschermingsgraad frontzijde (IP) | IP65 |
Hoogte | 168 mm |
Diepte | 68 mm |
Uitvoering als omkeerschakelaar | Nee |
Bedrijfsspanning (meetspanning) | 690 - 690 V |
Nom. continustroom, AC-21, 400 V | 40 A |
Nom. vermogen bij AC-3, 400 V | 11 kW |
Schakelvermogen bij 400 V | 11 kW |
Kleur bedieningselement | Grijs |
Aantal schakelaars | 1 |
Nom. continustroom, AC-23, 400 V | 25 A |
Beschermingsgraad (NEMA) | Overig |
Logistiek
Beschikbare voorraad | 336 st |
Levertermijn | Verwacht over 1 werkdag |
Aantal eenheden in artikel | 1 st |
Minimale bestelafname | 1 st |
Standaard voorraadartikel | Ja |
Bruto gewicht | 0,41 kg |
Afmeting verpakking | 0,35 x 0,275 x 0,17 m |
Prijs
Bruto prijs (€) | 62,70 per 1 st |
