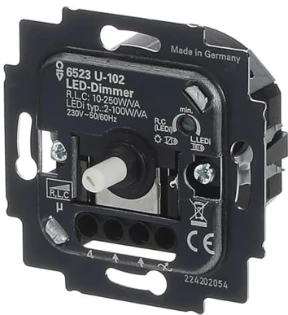

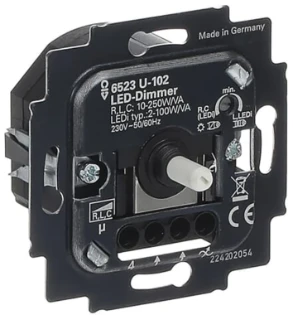

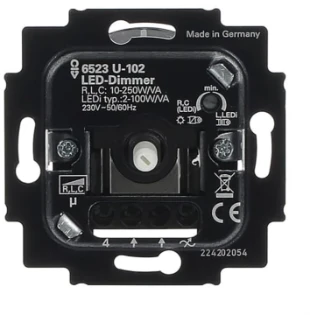

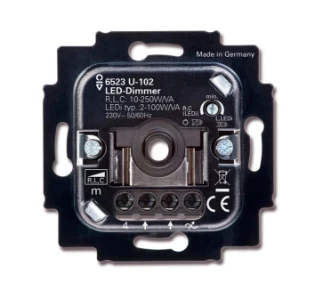

ABB - Dimmer - 6523 U-102

6523 U-102 LED DIMMER 2-100VA 230V 50/60Hz 2-100W/VA

Busch-draaidimmer, voor dimbare Retrofit-led-lampen (LEDi), verlichting aangesloten op conventionele of elektronische transformatoren, gloeilampen, 230 V-halogeengloeilampen en dimbare halogeen-energiespaarlampen, 100 W/VA, inbouwsokkel.

With rotary control, two-way switch and soft-catch.
2-wire connection (neutral conductor not required)
Optimised for dimming of retrofit LED lamps (LEDi).
For dimmable Retrofit-LEDs (LEDi).
For dimmable Retrofit-LEDs with conventional or electronic transformers.
For incandescent lamps, 230 V tungsten halogen lamps, low-voltage halogen lamps with conventional or electronic transformers and dimmable energy-saving halogen lamps.
Mix operaton of LED with conventional loads possible.
Via mode switch adjustable between leading edge control and trailing edge control.
Low-noise level by MOSFET transistors.
With electronic short-circuit protection.
With electronic overload protection.
With adjustable minimum brightness.
Without cover plate.

Rated voltage: 230 V~, + 10% / - 10%
Rated frequency: 50 Hz/60 Hz
Nominal power: 2 - 100 W/VA (retrofit LED loads).
Nominal power: 10 - 250 W/VA (non-LED loads).

Duurzaam product

Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Dimmer" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.
