ABB - Dimactor bussysteem - 6212/1.1

6212/1.1 6220-0-0015FAH SENSOR/DIMAKTOR 1/1-V 180 W/VA INB.

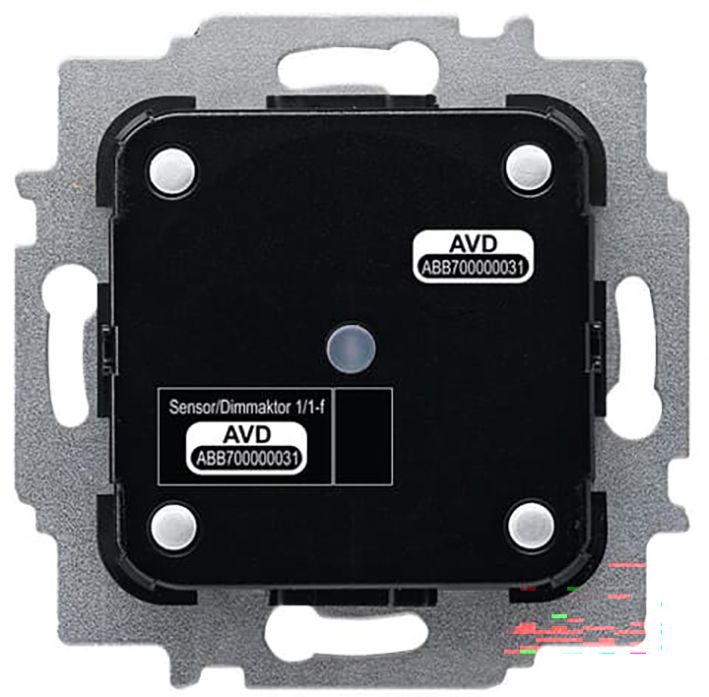

FaH Sensor/dimaktor, 1/1-voudig, universeel, voor Busch-free@home®, 10-180 W/VA, inbouw.

For dimming 230 V~ loads. With integrated universal dimming actuator for controlling LEDs, incandescent lamps, 230 V halogen lamps, low-voltage halogen lamps with conventional or electronic transformers, and dimmable energy-saving halogen lamps. For dimmable Retrofit-LEDs (LEDi). Dimming function is available also without prior programming (pre-configured). Configuration can be changed later via the web interface (groups, scenes, etc.). For contacting 1gang rocker 6230-10-xxx, 6231-10-xxx, 6232-10-xxx, 6233-10-xxx und 6234-10-xxx. The bus can be connected via enclosed terminal block. When installing in the flush-mounted box, a spatial division between the bus cable and 230 V installation cable is to be adhered to! If this minimum distance is not possible, use electronic boxes or insulating tubes.

Duurzaam product

Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Dimactor bussysteem" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.
