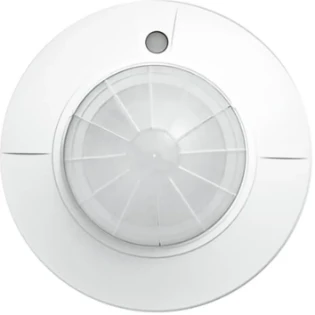

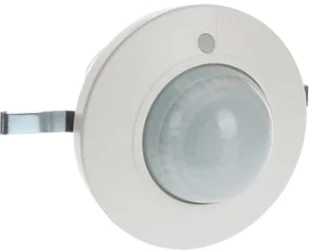

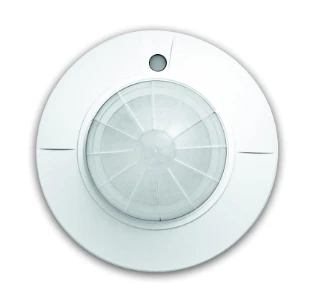

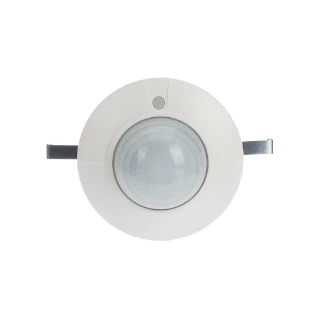

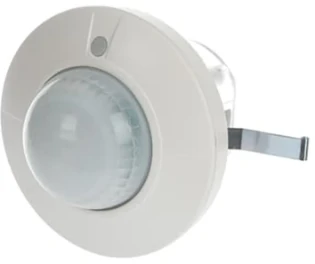

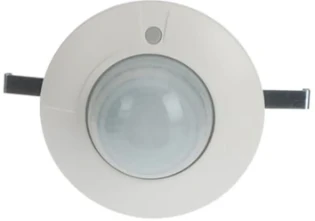

ABB - Bewegings-/aanwezigheidsschakelaar compleet - 6818 U

6818 U BW PRESENT TECH BASICLI BW PRESENT TECH BASICLINE CORR

Busch-Wächter® Present tech BasicLINE Corridor, voor het helderheids- en bewegingsafhankelijk schakelen van verlichting, 4 A, 230 V AC, inbouwsokkel.

For switching lighting systems that depend on brightness and movement.
Detection range (for installation height of 2.5 m, circular, up to 24 m in diameter).
Additional activation/deactivation possibility through pushbutton input.
Adaptation of the detection range possible using the included masking elements.
With brightness-independent test mode for evaluating the detection zone.
With detection display in test mode.
With automatic motion detection.
With automatic sensitivity adaptation. Mounting possibility in combination with built-in installation boxes and device sockets.
Ceiling installation using included dust protection housing.
Built-in depth incl. dust protection housing 48 mm
Built-in depth Presence detector 18 mm.
Adjustment elements accessible on the front side.
Surveillance density: 215 sectors with 860 switching segments.
Switch-off delay: approx. 10 sec - 30 min or short-time pulse adjustable.
Remote control possible via IR service remote control 6843.
Use outdoors possible due to combination with surface-mounted housing 6888.

Duurzaam product

Dit product is aangemerkt als duurzaam doordat aan de ETIM productgroep "Bewegingsschakelaar compleet" bij juiste toepassing energiebesparende dan wel energieopwekkende eigenschappen zijn toegekend. Dit leidt tot CO2-reductie.
